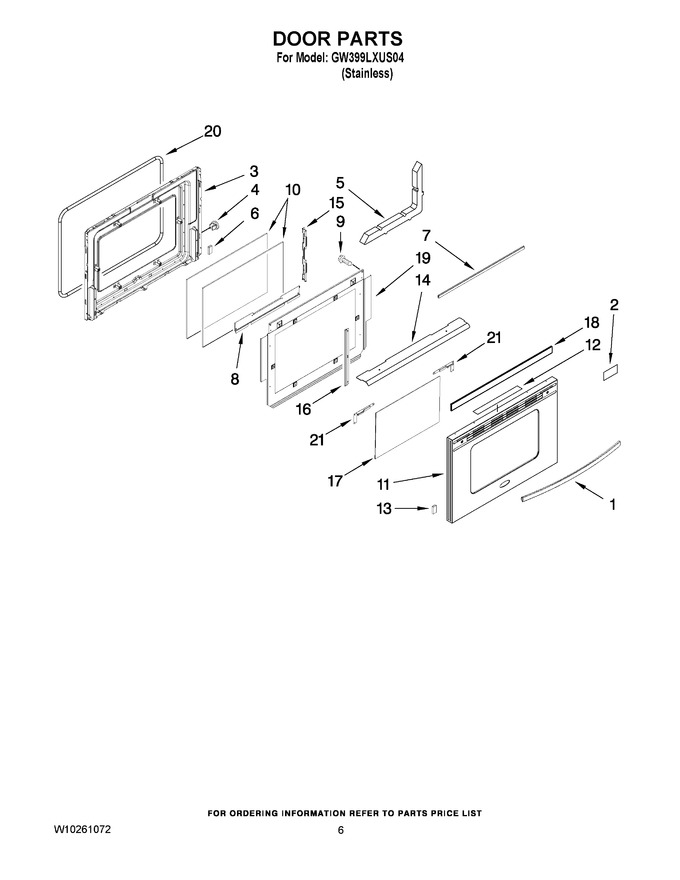

01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10144883 | Handle, Door (Replaces: W10118424) |
|
$ 240.63 | |||||
| 2 | W10175320 | Name Plate |
|
$ 41.71 | |||||
| 3 | 2402W312-19 | Liner, Door |
|
$ 144.50 | |||||
| 4 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 11.01 | ||||
| 5 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 6 | WP74005546 | Spacer (Replaces: 8010P130-60) |
|
$ 10.53 | |||||
| 7 | 7201P143-60 | Seal, Door |
|
$ 16.81 | |||||
| 8 | 3804F317-80 | Retainer, Glass (side) |
|
$ 65.61 | |||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 10 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 11 | 7760P242-60 | Panel, Oven Dr |
|
$ 242.20 | |||||
| 12 | 74011048 | Insulation, Foil (Replaces: 7002P463-60) |
|
$ 79.70 | |||||
| 13 | 7112P034-60 | Clip, Glass |
|
- | |||||
| 14 | 3604F418-51 | Shield, Door |
|
$ 77.46 | |||||
| 15 | 3804F293-45 | Retainer, Glass |
|
$ 16.56 | |||||
| 16 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 17 | 7902P468-60 | Glass, Inner Door (clear) |
|
- | |||||
| 17 | 7902P768-60 | Glass, Inner Door (coated) |
|
- | |||||
| 18 | WP74010043 | Insulation, Door (Replaces: 7002P427-60) |
|
$ 74.64 | |||||
| 19 | 3601F373-51 | Baffle |
|
$ 271.36 | |||||
| 20 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 21 | 3804F307-51 | Retainer, Glass (right) |
|
$ 109.75 | |||||
| 21 | 3804F308-51 | Retainer, Glass (left) |
|
- |
