01 - Cooktop Parts
02 - Chassis Parts

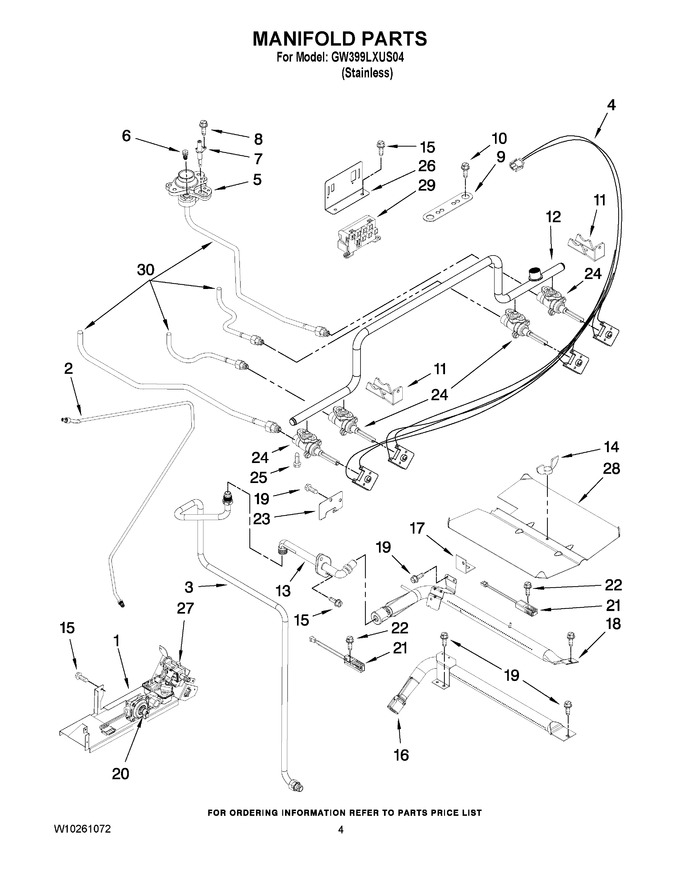

03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271712 | Cover, Bnr Valve |
|
- | |||||
| 2 | 7506P535-60 | Tubing, Gas Supply |
|
$ 98.64 | |||||
| 3 | 7506P536-60 | Tube, Broil |
|
- | |||||
| 4 | 7450P128-60 | Harness, Valve Includes Switches |
|
- | |||||
| 5 | WPW10407680 | Orifice, Holder (5k,lr) (Replaces: 7527P084-60) |
|
$ 109.61 | |||||
| 5 | 7527P083-60 | Orifice, Holder (9.2k,rr) |
|
- | |||||
| 5 | 74010961 | Orifice, Holder (12k,lf) (Replaces: 7527P082-60) |
|
$ 107.93 | |||||
| 5 | WPW10407678 | Orifice, Holder (16k,rf) (Replaces: 7527P081-60) |
|
$ 120.04 | |||||
| 6 | 7527P083-60 | Orifice (lf,rr) |
|
- | |||||
| 6 | WPW10407680 | Orifice (lr) (Replaces: 7527P084-60) |
|
$ 109.61 | |||||
| 6 | WPW10407678 | Orifice (rf) (Replaces: 7527P081-60) |
|
$ 120.04 | |||||
| 7 | WPW10110378 | Ignitor (Replaces: W10110378) |
|
Immediately | $ 52.10 | ||||
| 8 | WP8273062 | Screw, Ignitor (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 9 | W10160530 | Retainer, Base (4) |
|
- | |||||
| 10 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 11 | W10160655 | Bracket, Valve (4) |
|
- | |||||
| 12 | W10177097 | Pipe, Manifold (Replaces: 7513P536-60) |
|
- | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 7507P407-60) |
|
$ 83.65 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 7.08 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Bnr |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broil |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 20 | WP74006035 | Valve/regulator (Replaces: 7510P079-60) |
|
$ 294.05 | |||||
| 21 | 74007498 | Ignitor (bake/broil) (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 23 | 4005F421-45 | Cover, Ignitor Wire |
|
- | |||||
| 24 | WPW10290838 | Valve, Top Burner (lf, Rf, Rr (3)) (Replaces: 7502P566-60) |
|
$ 271.81 | |||||
| 24 | W10836481 | Valve, Top Burner (lr) (Replaces: W10160941) |
|
$ 132.31 | |||||
| 25 | W11233072 | Support, Screw (4) (Replaces: 7101P338-60) |
|
Immediately | $ 14.02 | ||||
| 26 | 3807F752-45 | Support, Spark Mod |
|
$ 27.55 | |||||
| 27 | WP7501P232-60 | Valve, Safety (Replaces: 7501P232-60) |
|
Immediately | $ 336.58 | ||||
| 28 | 3601F307-45 | Baffle, Bake (broil) |
|
$ 200.26 | |||||
| 28 | 3601F239-45 | Baffle, Bake (bake) |
|
- | |||||
| 29 | WP7431P064-60 | Spark Module (Replaces: 7431P064-60) |
|
$ 308.99 | |||||
| 30 | 7506P524-60 | Tube, Burner (lr) |
|
- | |||||
| 30 | 7506P521-60 | Tube, Burner (rf) |
|
- | |||||
| 30 | 7506P522-60 | Tube, Burner (lf) |
|
- | |||||
| 30 | 7506P523-60 | Tube, Burner (rr) |
|
- | |||||
| NI | W10168551 | Spuds, Lp Gas |
|
$ 46.31 |
