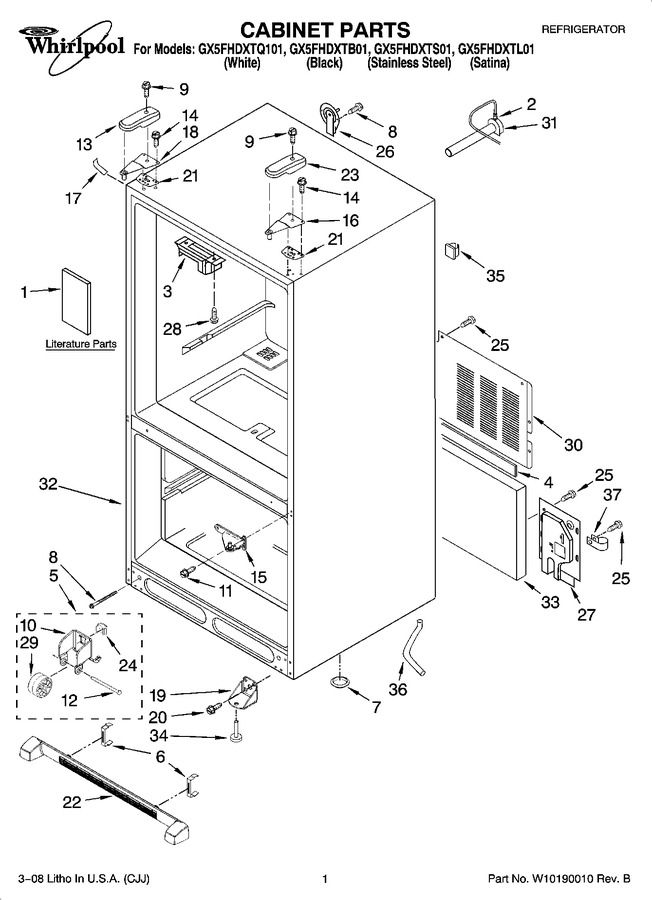

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827952		Tech Sheet		Appelez-nous	-
1	W10137645		Owners Manual		Appelez-nous	-
1	W10132941		Tag, Energy		Appelez-nous	-
2	WPM0114003		Clip   (Replaces: M0114003)				$ 11.05
3	WP67003405		Plate, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	A3076901		Plug, Bottom				$ 5.70
8	71003131		Bolt, Adjustable   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	M1205302		Pin, Roller				$ 5.85
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
13	12684201W		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	W10918164		Hinge, Center (2) (black (rt))   (Replaces: 67006443)				$ 86.64
15	67006442		Hinge, Center (2) (black (lt))				$ 115.02
15	67006379		Hinge, Center (2) (white (rt))		Appelez-nous	-
15	W10918113		Hinge, Center (2) (white (lt))   (Replaces: 67006277)				$ 93.26
16	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 86.75
19	12906303WD		Bracket, Foot   (Replaces: 67007174)				$ 84.36
20	67006564		Screw (8)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 147.21
22	WPW10534154		Grille Assembly (includes Clips) (white)   (Replaces: 67006377)				$ 146.34
23	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
23	12684202W		Cover, Right Hinge (white)		Appelez-nous	-
24	M0286708		Nut, Speed				$ 45.57
25	67006425		Screw (9)			Immediately	$ 6.95
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
27	12479803		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw   (Replaces: 67006669)			Immediately	$ 7.61
29	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
30	12575101ED		Cover, Unit		Appelez-nous	-
31	W11176463		Elbow, Till Tube   (Replaces: W10137519)			Immediately	$ 114.15
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
35	WPM0104106		Clip, Tube   (Replaces: M0104106)				$ 7.78
36	W10164397		Tube, Drain				$ 14.79
37	67001067		Clip, Drain Tube				$ 9.20
