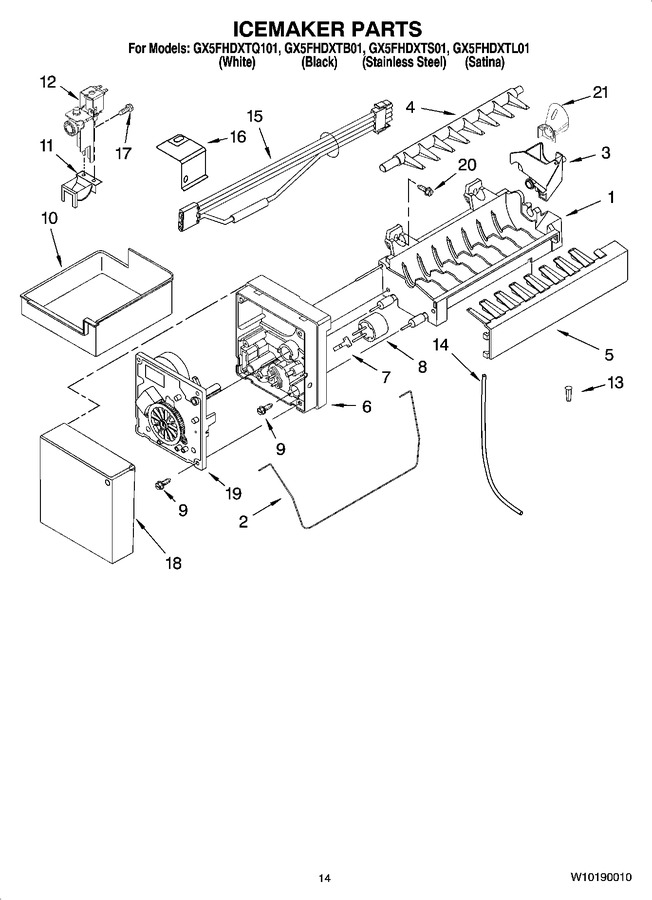

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP67004028 | Arm, Shutoff (Replaces: 67004028) |
|
Immediately | $ 91.35 | ||||
| 3 | WP628356 | Cup, Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 6 | WP2195914 | Support & Motor Assembly (Replaces: 2195914) |
|
$ 104.57 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 9 | WP681249 | Screw (Replaces: 681249) |
|
Immediately | $ 7.86 | ||||
| 10 | WP67001255 | Pan, Ice (Replaces: 67001255) |
|
$ 203.08 | |||||
| 11 | 12831101 | Bracket, Tube Support (Replaces: 67004101) |
|
$ 12.41 | |||||
| 12 | WP67003753 | Valve, Dual Water Inlet (Replaces: 67003753) |
|
Immediately | $ 109.40 | ||||
| 13 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 14 | WPB5705307 | Tubing, Plastic (Replaces: B5705307) |
|
$ 12.43 | |||||
| 15 | WPD7813010 | Harness, Ice Maker (Replaces: W10153408) |
|
Immediately | $ 73.97 | ||||
| 16 | WP2256087 | Bracket (Replaces: 625910) |
|
$ 93.00 | |||||
| 17 | 681390 | Screw |
|
$ 13.06 | |||||
| 18 | WPW10289690 | Cover (Replaces: 67004710) |
|
Immediately | $ 8.40 | ||||
| 20 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 21 | 12918001 | Funnel, Fill Tube (Replaces: 67005603) |
|
Immediately | $ 12.41 | ||||
| 100 | D7824706Q | Complete Icemaker Assembly (Replaces: W10122519) |
|
Immediately | $ 167.35 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 231.56 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| D7824706Q | Complete Icemaker Assembly |
|
Immediately | $ 167.35 | |||||
| 8003RP | Ice Maker Installation Kit (Replaces: 18001005) |
|
Immediately | $ 43.29 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 |
