SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)

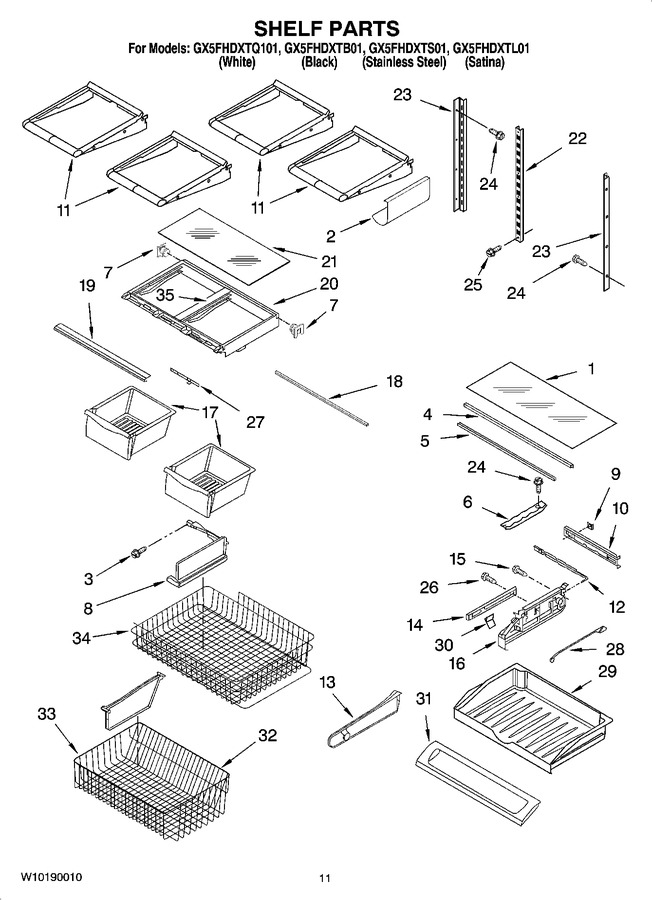

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002761		Glass, Pantry				$ 103.45
2	10448903		Rack, Bottle		Appelez-nous	-
3	67006608		Screw		Appelez-nous	-
4	W11812285		Support, Pantry (2)   (Replaces: 67006010)				$ 50.79
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 67002330)				$ 103.20
6	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.56
7	WP12603701		Support (2)   (Replaces: 12603701)				$ 10.31
8	67004127		Divider, Upper Basket				$ 10.10
9	67002329		Gasket, Pantry				$ 21.04
10	12656202		Housing, Control   (Replaces: 67005625)				$ 141.75
11	12654709		Shelf, Sta (4)				$ 105.11
12	WP67003793		Slide, Temperature   (Replaces: 67003793)			Immediately	$ 74.75
13	WP67003531		Divider, Pantry   (Replaces: 67003531)				$ 162.82
14	WPW10235370		Glide, Drawer (2)   (Replaces: 67007026)			Immediately	$ 199.80
15	WP98165		Screw (4)   (Replaces: 67006287)				$ 8.00
16	W10874836		Track, Pantry (right)   (Replaces: 67005858)			Immediately	$ 38.43
16	W10874836		Track, Pantry (left)   (Replaces: 67005863)			Immediately	$ 38.43
17	WP67004515		Pan, Crisper (2)   (Replaces: 67004515)			Immediately	$ 168.30
18	WP12642303WD		Support, Crisper Cover   (Replaces: 67002748)				$ 106.91
19	67004009		Trim, Crisper		Appelez-nous	-
20	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
21	WP67006704		Glass, Crisper Cover   (Replaces: 67006704)				$ 212.77
22	67001073		Ladder, Center				$ 54.18
23	67002489		Ladder, Side				$ 71.09
24	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
25	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.13
26	WP67006415		Screw (4)   (Replaces: 67006415)				$ 7.80
27	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 7.81
28	WP67003795		Bar, Temperature Control   (Replaces: 67003795)				$ 8.05
29	WP67003531		Drawer, Pantry   (Replaces: 67003531)				$ 162.82
30	W11498983		Knob, Temperature Control   (Replaces: 67003791)				$ 29.18
31	W10827015		Door, Pantry Drawer   (Replaces: 67005899)			Immediately	$ 175.81
32	WPW10503184		Basket, Freezer (lower)   (Replaces: 67006025)				$ 238.17
33	67006644		Divider, Lower Basket		Appelez-nous	-
34	67004987		Basket, Freezer (upper)				$ 244.35
35	WPW10326469		Support, Center Crisper Frame   (Replaces: 67004514)			Immediately	$ 30.70

    View Diagram in Separate Window       Print Part List
