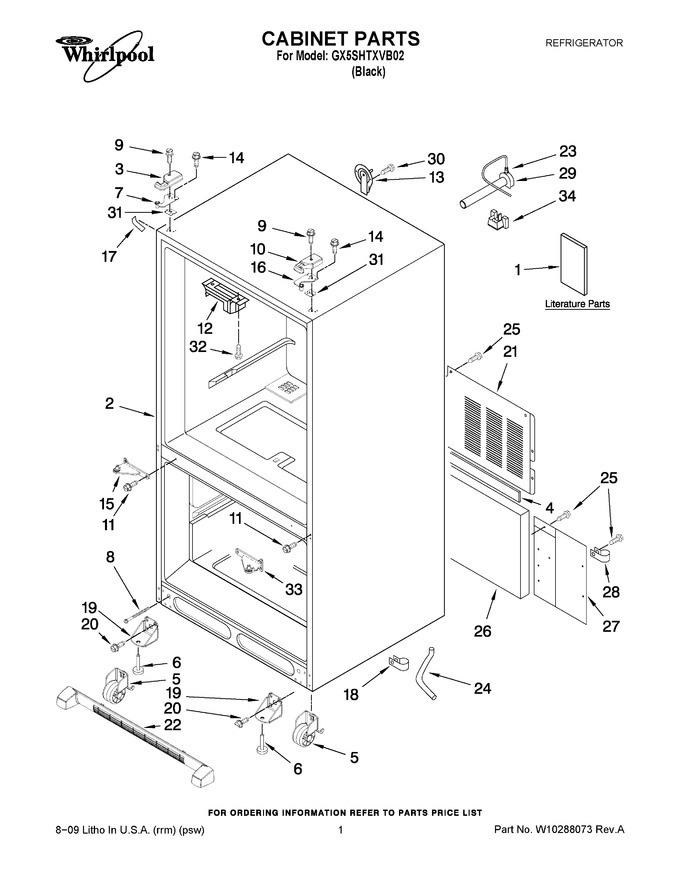

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10200283 | Use & Care Guide |
|
- | |||||
| 1 | 12827967 | Tech Sheet |
|
- | |||||
| 1 | W10187811 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Left Hinge (black) (Replaces: 12962301B) |
|
Immediately | $ 22.22 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12580304 | Roller Assy. (2) |
|
$ 5.84 | |||||
| 6 | 10354002 | Foot, Brake |
|
Immediately | $ 7.38 | ||||
| 7 | W11592375 | Hinge, Left Top (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 12606103) |
|
Immediately | $ 6.74 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | WPW10191117 | Cover, Right Hinge (apollo Grey) (Replaces: 12962302AP) |
|
$ 21.95 | |||||
| 10 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918164 | Hinge, Center (lt) (black) (Replaces: 13000007ED) |
|
$ 86.64 | |||||
| 16 | W11592374 | Hinge, Right Top (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | W10157973 | Clip, Drain |
|
$ 7.80 | |||||
| 19 | 12906303WD | Bracket, Foot (2) |
|
$ 84.36 | |||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 12575101WD | Cover, Unit |
|
$ 73.26 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: 12880103B) |
|
$ 147.21 | |||||
| 23 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 11.05 | |||||
| 24 | W10164397 | Tube, Drain |
|
$ 14.79 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12820503 | Fiber, Acoustic |
|
- | |||||
| 27 | 12751509 | Cover, Water Valve |
|
- | |||||
| 28 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 10.99 | |||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 31 | 12999501 | Shim, Top Hinge (left) |
|
$ 94.79 | |||||
| 31 | 12999502 | Shim, Top Hinge (right) |
|
$ 95.81 | |||||
| 32 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 7.61 | ||||
| 33 | W10918164 | Hinge, Center (rt) (black) (Replaces: 13000008ED) |
|
$ 86.64 | |||||
| 34 | 12777701 | Block, Filter |
|
$ 7.17 |
