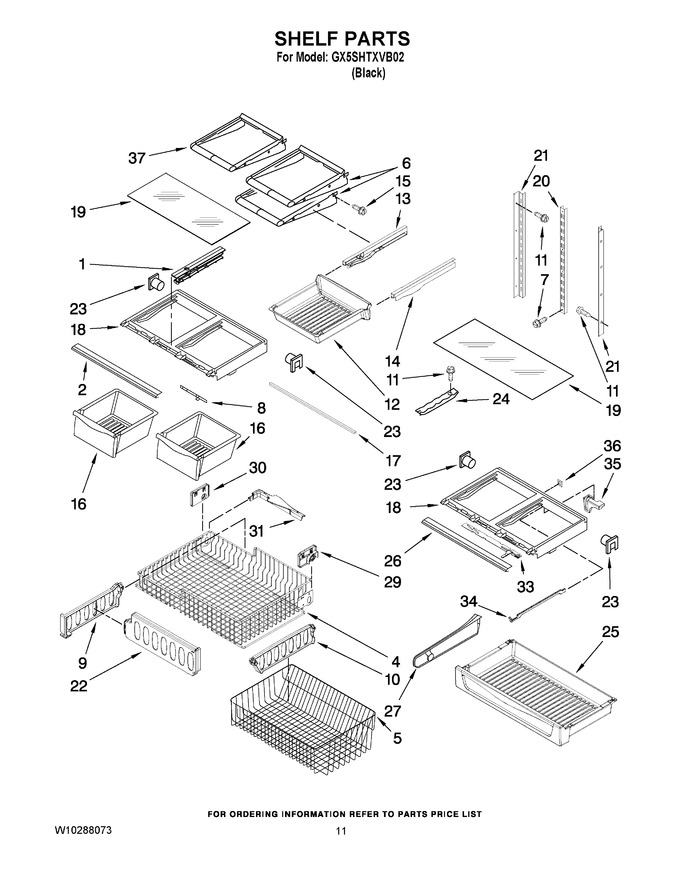

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 12796401) |
|
Immediately | $ 30.70 | ||||
| 2 | W10231508 | Trim, Crisper |
|
$ 93.57 | |||||
| 4 | WPW10348246 | Basket, Freezer (upper) (Replaces: W10209706) |
|
$ 261.88 | |||||
| 5 | W10150039 | Basket, Freezer (lower) |
|
$ 128.38 | |||||
| 6 | 12654610 | Shelf (3) |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.13 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 27.80 | ||||
| 10 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 88.08 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 12 | 12802801SP | Pan, Deli |
|
- | |||||
| 13 | WP67001054 | Glide -left (Replaces: 12656601SP) |
|
Immediately | $ 8.40 | ||||
| 14 | WP67001053 | Glide-right (Replaces: 12656602SP) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 12990302SP) |
|
Immediately | $ 14.02 | ||||
| 16 | WP67004515 | Pan, Crisper (2) (Replaces: 12804601) |
|
Immediately | $ 168.30 | ||||
| 17 | WP12642303WD | Brace, Crisper (2) (Replaces: 12642303WD) |
|
$ 106.91 | |||||
| 18 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 227.55 | ||||
| 19 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 212.77 | |||||
| 20 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 29.94 | |||||
| 22 | W10171558 | Divider, Upper Frz |
|
$ 40.47 | |||||
| 23 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 80.83 | |||||
| 24 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 25 | 12645026 | Drawer, Pantry |
|
- | |||||
| 26 | W10231336 | Trim, Pantry |
|
- | |||||
| 27 | 12707602 | Divider, Pantry |
|
- | |||||
| 29 | W10348260 | Mount, Rh Gear (Replaces: W10233899) |
|
$ 85.62 | |||||
| 30 | W10348259 | Mount, Lh Gear (Replaces: W10233898) |
|
$ 85.59 | |||||
| 31 | W10149389 | Lift, Bail Arm |
|
$ 88.25 | |||||
| 33 | 12531502 | Slide, Pantry |
|
- | |||||
| 34 | 12531402 | Bar |
|
- | |||||
| 35 | WP12531601 | Tunnel (Replaces: 12531601) |
|
$ 10.51 | |||||
| 36 | 12531701 | Gasket, Pantry |
|
- | |||||
| 37 | W10205737 | Shelf, Stationary (Replaces: 12654710) |
|
$ 289.68 |
