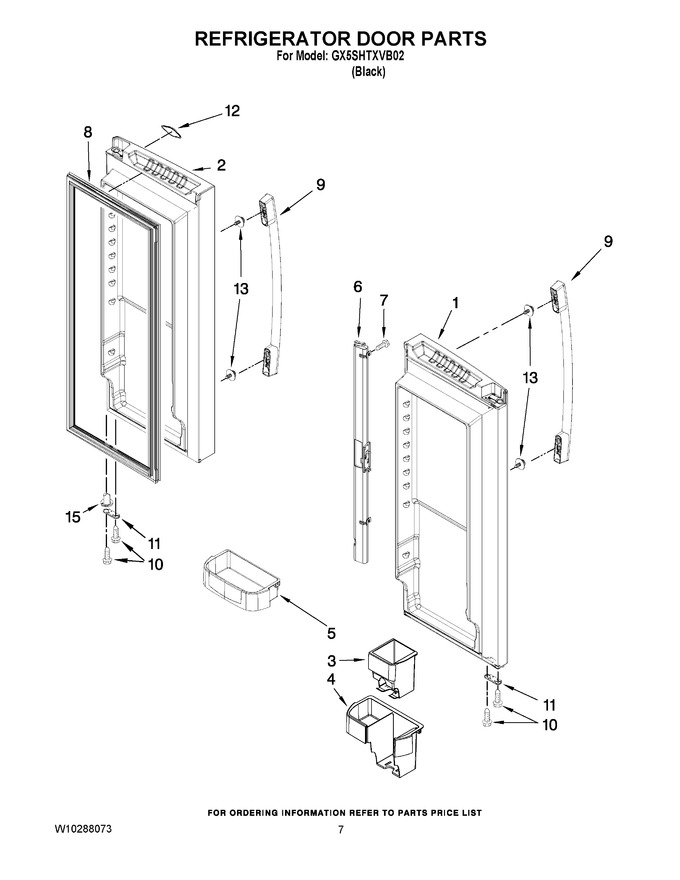

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12978074BQ Door, Left (black) Appelez-nous -
2 12978075BQ Door, Right (black) Appelez-nous -
3 WP13005401SP Sleeve, Can Dispenser   (Replaces: 13005401SP) In-Stock Immediately $ 79.12

4 W10169346 Bucket, Can Dispenser Special Order $ 49.22

5 12849124SP Bucket, Door Medium (3) (gripperno.67003212) Appelez-nous -
5 WPW10289497 Bucket, Door Gallon (1) (gripperno.67005453)   (Replaces: 12699208SP) In-Stock Immediately $ 81.09

6 WP12722803B Mullion, Door (black)   (Replaces: 12722803BKV) In-Stock Immediately $ 206.80

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W11368721 Gasket, Door (black)   (Replaces: W10163895) In-Stock Immediately $ 169.21

9 W11351146 Handle, Door (black)   (Replaces: W10222985) Special Order $ 189.08

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11708403 Stop, Door (black)   (Replaces: 12968202B) In-Stock Immediately $ 14.75

12 2220214 Nameplate Special Order $ 32.43

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 11.91

15 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32
