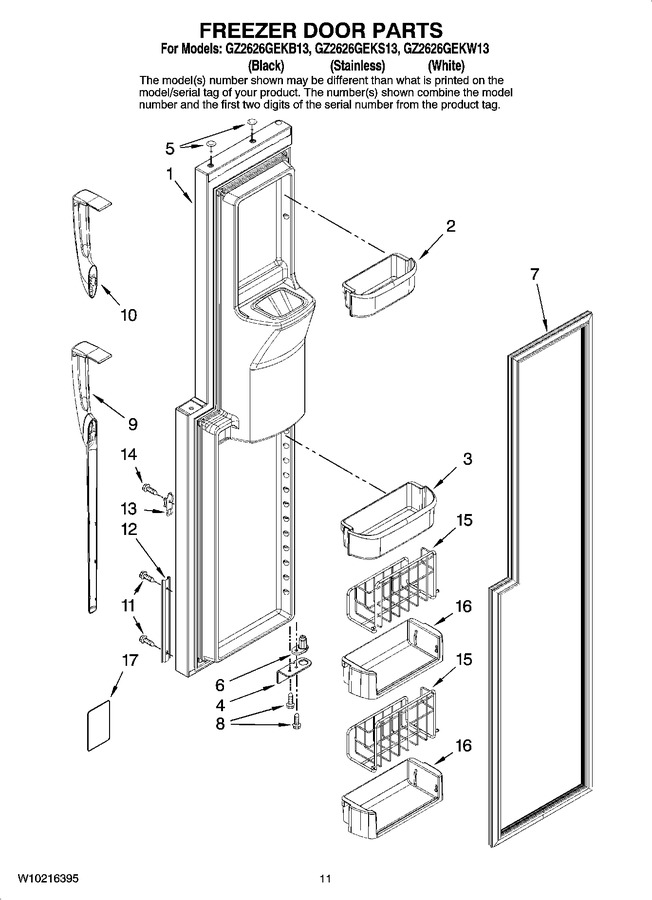

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13091901WQ | Door, Freezer (white) |
|
- | |||||
| 1 | 13091901BQ | Door, Freezer (black) |
|
- | |||||
| 1 | 13091928SQ | Door, Freezer (stainless) |
|
- | |||||
| 2 | 67004773 | Bucket, Upper |
|
- | |||||
| 3 | 67004114 | Bucket, Lower (1) |
|
- | |||||
| 4 | 67007020 | Stop, Door (black) |
|
- | |||||
| 4 | 67006478 | Stop, Door (white) |
|
- | |||||
| 5 | 12718802B | Plug, Button (black) |
|
- | |||||
| 5 | 12718802W | Plug, Button (white) |
|
- | |||||
| 6 | 67006677 | Closure, Door (black) |
|
- | |||||
| 7 | 12763204W | Gasket, Door (white) |
|
$ 190.08 | |||||
| 7 | 12763204B | Gasket, Door (black) |
|
$ 120.76 | |||||
| 8 | 67006672 | Screw |
|
- | |||||
| 9 | W10137750 | Handle, Door (black (for Gz2626gekb13)) |
|
- | |||||
| 9 | W10137751 | Handle, Door (white (for Gz2626gekw13)) |
|
- | |||||
| 10 | W10137757 | Handle, Door (stainless (for Gz2626geks13)) |
|
- | |||||
| 11 | 59002016 | Screw (2) |
|
- | |||||
| 12 | 67004117 | Cleat, Handle |
|
$ 6.47 | |||||
| 13 | WP67006852 | Clip, Handle (Replaces: 67006852) |
|
$ 27.25 | |||||
| 14 | WP7101P126-60 | Screw (Replaces: 67006669) |
|
Immediately | $ 8.36 | ||||
| 15 | 67005629 | Basket, Tilt |
|
- | |||||
| 16 | 67004566 | Frame, Tilt Basket |
|
- | |||||
| 17 | 67007028 | Card, Handle Release |
|
$ 11.10 |
