01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

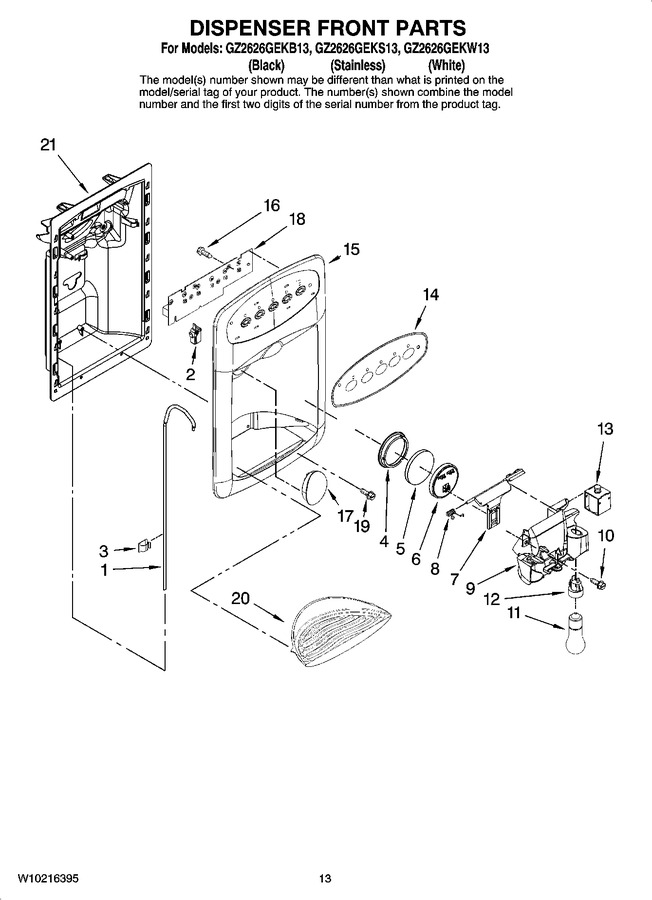

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004938		Waterline   (Replaces: 67005035)				$ 139.23
2	WP12575501		Switch, Limit   (Replaces: 12575501)				$ 72.35
3	M0104102		Clip, Cord (2)				$ 8.10
4	12665101		Seal, Ice Chute				$ 5.84
5	67007098		Insulation, Chute Door				$ 21.25
6	12562701		Door, Ice Chute				$ 5.84
7	67004119		Hinge, Ice Chute				$ 5.70
8	WP12565502		Spring, Chute Door   (Replaces: 12565502)				$ 8.43
9	12703608SP		Extension, Ice Chute		Appelez-nous	-
10	67006425		Screw (3)   (Replaces: 67006400)			Immediately	$ 7.30
11	W10159206		Bulb, Light		Appelez-nous	-
12	W10129972		Socket, Light		Appelez-nous	-
13	12575408SP		Solenoid		Appelez-nous	-
14	67005012		Insert (white)		Appelez-nous	-
14	WP67004151		Insert (black)   (Replaces: 67004901)				$ 85.08
15	12703809BB		Facade (black)				$ 127.34
15	12703809WS		Facade (white)		Appelez-nous	-
16	2006254		Screw (2)   (Replaces: 67006683)				$ 13.79
17	12598902B		Actuator Pad Assy. (black)				$ 35.81
17	12598902S		Actuator Pad Assy. (stainless)		Appelez-nous	-
18	12945104		Board, Control		Appelez-nous	-
19	67006682		Screw (2)		Appelez-nous	-
20	WP67004123		Tray, Sump (white)   (Replaces: 67004123)				$ 68.80
20	WPY67003722		Tray, Sump (black)   (Replaces: Y67003722)				$ 129.59
