SELECT A DIAGRAM
New Model Search:

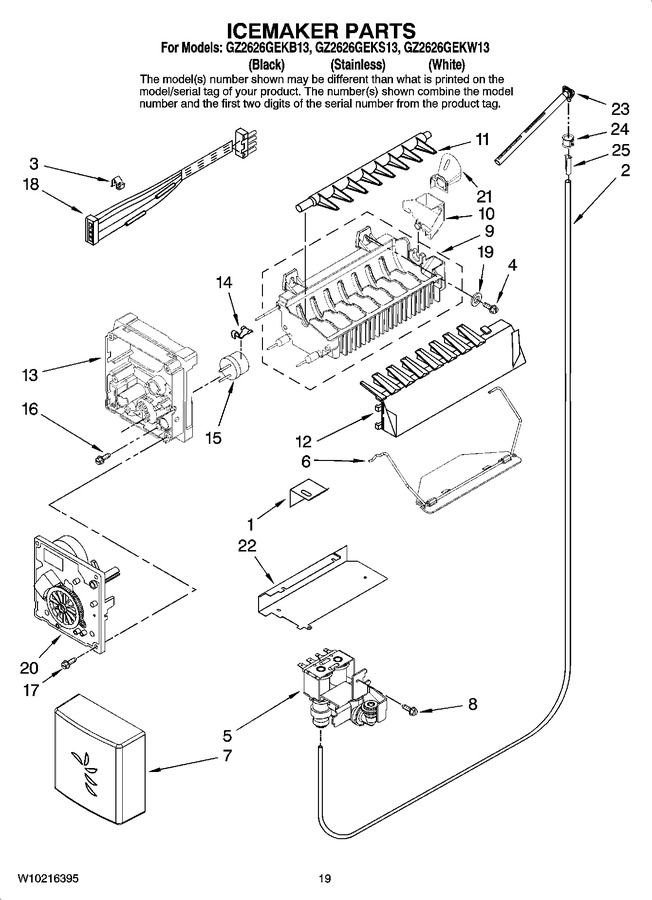

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Icemaker (Replaces: B8391803) |
|
$ 97.65 | |||||
| 2 | WPB5705307 | Tube, Plastic (Replaces: 67003360) |
|
$ 13.05 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | 67006698 | Screw |
|
- | |||||
| 5 | 12544122 | Valve, Water |
|
- | |||||
| 6 | W10152975 | Arm, Shutoff |
|
$ 41.86 | |||||
| 7 | WPW10289690 | Cover (Replaces: 12582501) |
|
Immediately | $ 8.82 | ||||
| 8 | WP489128 | Screw (Replaces: 67006662) |
|
$ 11.40 | |||||
| 9 | W10122523 | Mold & Heater Assembly (also Order 542638 Grease) |
|
- | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 29.16 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 12 | WP2182124 | Stripper, Ice (Replaces: 2182124) |
|
$ 90.35 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP2321258 | Thermostat (also Order 542369 Cement) (Replaces: 2321258) |
|
$ 103.93 | |||||
| 16 | W10001280 | Screw |
|
- | |||||
| 17 | W10001240 | Screw |
|
$ 9.22 | |||||
| 18 | 12975110 | Harness, Icemaker |
|
- | |||||
| 19 | 67006699 | Washer |
|
- | |||||
| 20 | W10122522 | Module Assembly |
|
- | |||||
| 21 | 12918001 | Funnel, Fill Tube (Replaces: 67005603) |
|
Immediately | $ 13.03 | ||||
| 22 | D7846203 | Shield, Icemaker |
|
- | |||||
| 23 | WP67003576 | Elbow, Fill Tube (Replaces: 67003576) |
|
$ 64.01 | |||||
| 24 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 25 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 100 | W10122513 | Icemaker Assembly |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 350930 | Customer Touch-up Material (white) |
|
Immediately | $ 40.12 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 799344 | Paint, Bulk (1qt.) (white) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1qt.) (biscuit) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4392901 | Customer Touch-up Material (biscuit) |
|
- | ||||||
| 350942 | Customer Touch-up Material (primer, White) |
|
$ 94.14 | ||||||
| 285006 | Customer Touch-up Material (black) (Replaces: 350939) |
|
$ 59.89 |
