View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

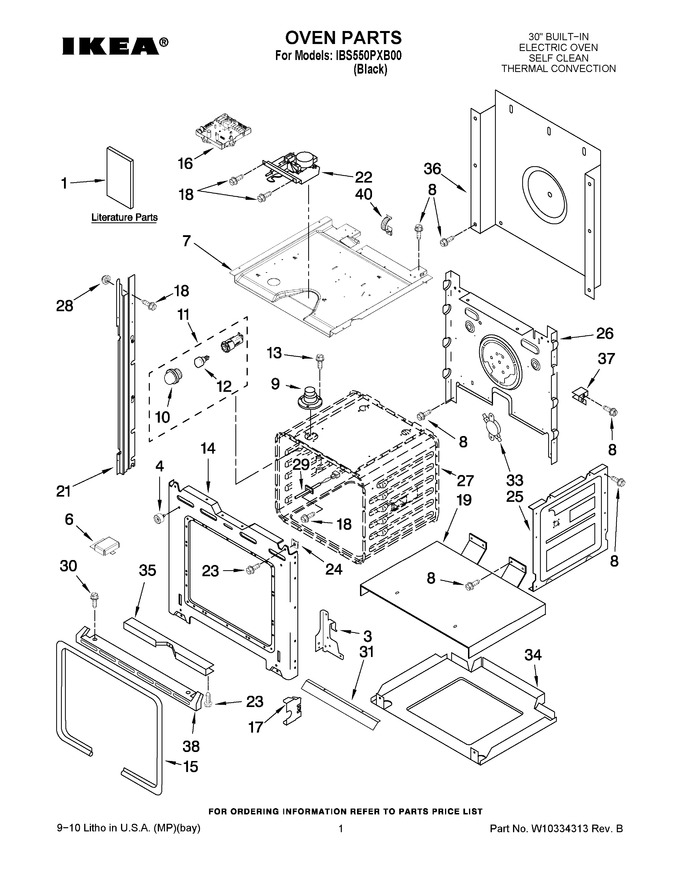

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10210919 | Instruction, Installation |
|
- | |||||
| 1 | W10201489 | Tech Sheet |
|
- | |||||
| 1 | W10075750 | Insert Sheet |
|
- | |||||
| 1 | 8304572 | Installation/undercounter |
|
- | |||||
| 1 | W10270566 | Owners Manual |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 115.36 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 119.41 | ||||
| 4 | W10105790 | Bumper, Door |
|
$ 7.06 | |||||
| 6 | W11819303 | Cover, Wire (Replaces: 8285593) |
|
- | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.19 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 116.63 | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Assembly, Oven Light (Replaces: W10009930) |
|
$ 96.63 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| 14 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 335.13 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 69.75 | ||||
| 16 | W10158972 | Control |
|
$ 265.25 | |||||
| 17 | 4452152 | Bracket, Mounting |
|
$ 35.18 | |||||
| 18 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.56 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | W10308235 | Rail, Mounting (left) |
|
- | |||||
| 21 | W10308234 | Rail, Mounting (right) |
|
- | |||||
| 22 | WPW10195934 | Latch, Motorized (Replaces: W10195934) |
|
Immediately | $ 288.66 | ||||
| 23 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 24 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.95 | |||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 143.51 | |||||
| 26 | W10161110 | Back, Chassis |
|
- | |||||
| 27 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 28 | WP4448444 | Grommet (Replaces: 4448444) |
|
$ 7.48 | |||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 30 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 7.19 | |||||
| 31 | 9760677 | Deflector, Vent |
|
$ 155.46 | |||||
| 33 | WP9759243 | Thermostat (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 34 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 35 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.86 | |||||
| 36 | WP4451747 | Cover, Back (Replaces: 4451747) |
|
$ 142.92 | |||||
| 37 | 4449845 | Support, Bracket |
|
- | |||||
| 38 | W10308246 | Vent Bottom Trim Assembly |
|
- | |||||
| 40 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | |||||
| NI | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| NI | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 118.90 |
