SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts

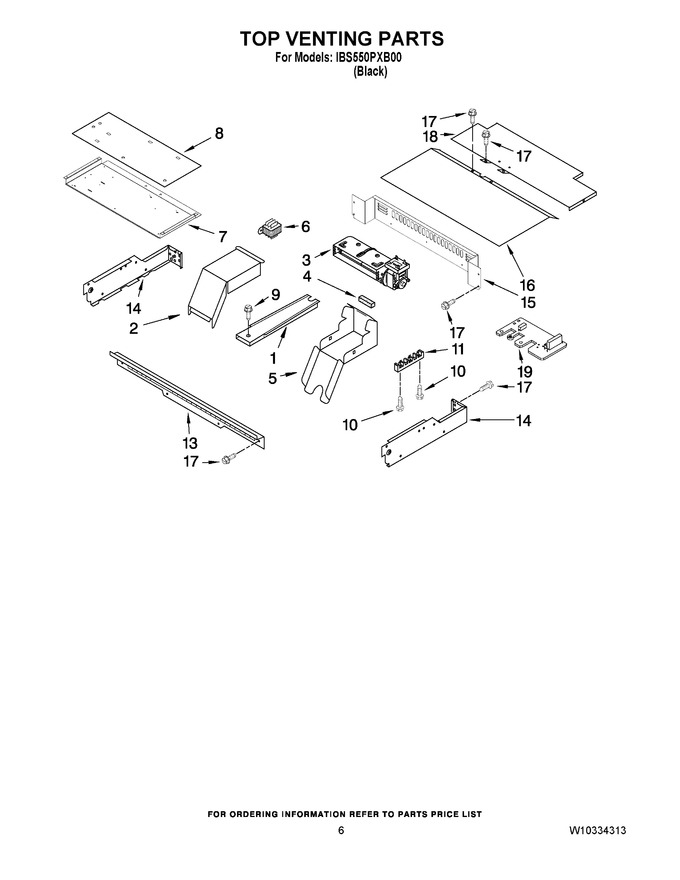

05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 105.01
2	4455178		Elbow, Vent-top				$ 15.52
3	WP4455352		Bracket   (Replaces: 4455352)				$ 37.51
3	W10810687		Blower   (Replaces: 8300223)			Immediately	$ 343.34
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
5	4455177		Elbow, Vent-bottom				$ 11.39
6	9760587		Transformer, Control				$ 112.69
7	W10171405		Mounting Plate		Appelez-nous	-
8	8303076		Insulation		Appelez-nous	-
9	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
10	W11684512		Screw   (Replaces: 3400080)				$ 14.81
11	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	8303497		Vent, Control Panel				$ 155.15
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 78.41
15	8303100		Back, Control		Appelez-nous	-
16	4450551		Cover, Top Rear		Appelez-nous	-
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	WP4452367		Cover, Top Front   (Replaces: 4452367)				$ 79.95
19	WP4451985		Suppressor   (Replaces: 4451985)				$ 173.47

    View Diagram in Separate Window       Print Part List
