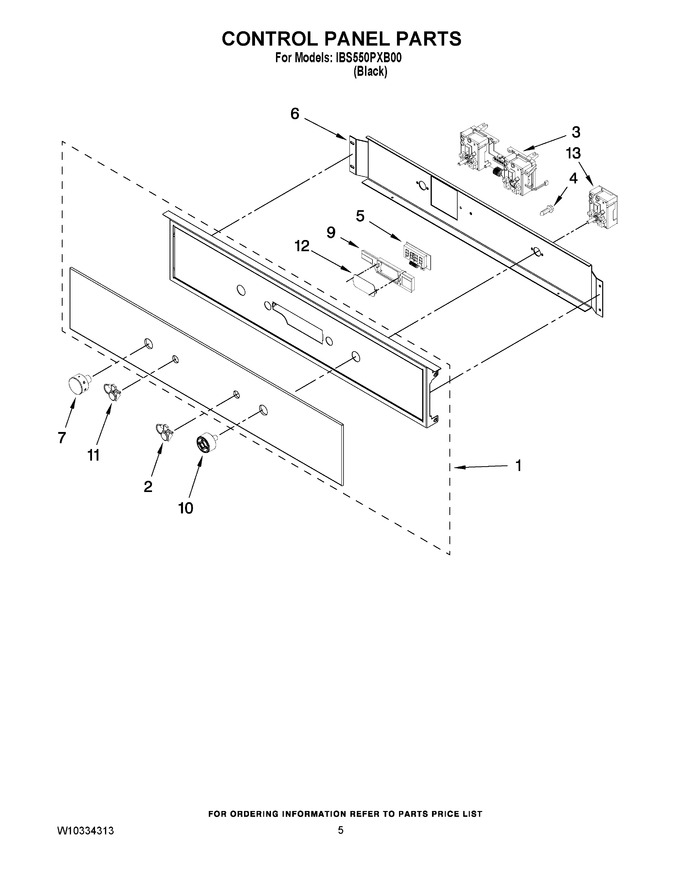

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10308238		Control Panel (black)		Appelez-nous	-
2	WPW10158961		Switch, Enter   (Replaces: W10158961)				$ 130.05
3	WPW10158965		User Interface   (Replaces: W10158965)			Immediately	$ 389.25
4	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
5	WPW10158964		Module, Display   (Replaces: W10158964)				$ 330.36
6	W10158967		Bracket, Ui		Appelez-nous	-
7	W10178792		Knob, Control			Immediately	$ 63.33
9	4453000		Bracket, Display		Appelez-nous	-
10	W10158969		Knob, Control				$ 94.03
11	W10158962		Switch, Cancel				$ 54.97
12	W10194089		Filter, Display				$ 12.13
13	W10158966		Rotary Encoder				$ 351.97
