SELECT A DIAGRAM

01 - Cabinet Parts

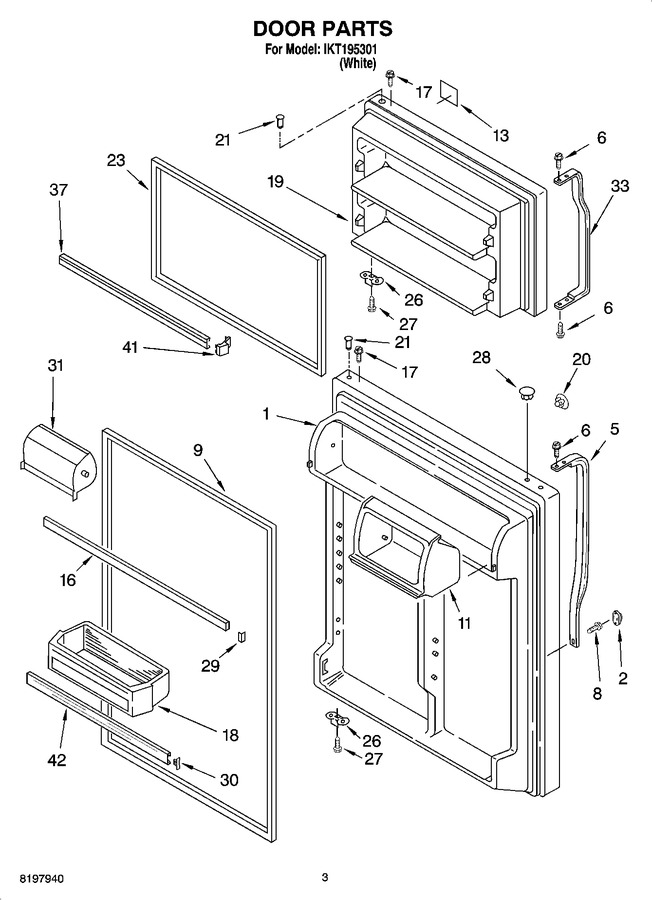

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183864		Refrigerator Door (includes 9 & 21)		Appelez-nous	-
2	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 8.14
5	WP2202807W		Handle   (Replaces: 2202807W)				$ 162.98
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
11	2210566		Housing Comp.				$ 65.25
13	2198877		Nameplate		Appelez-nous	-
16	2159312		Trim-door Shelf				$ 47.75
17	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
18	2204811		Door Bin (3)				$ 35.90
19	2183860		Freezer Door Panel		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.77
21	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 8.19
29	2177340		Plug-trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	2218109		Compartment Door				$ 33.66
33	WP2202806W		Handle, F.c.   (Replaces: 2202806W)				$ 155.40
37	2201050		Trim-door (2)				$ 43.26
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 13.25
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 136.25

    View Diagram in Separate Window       Print Part List
