New Model Search:

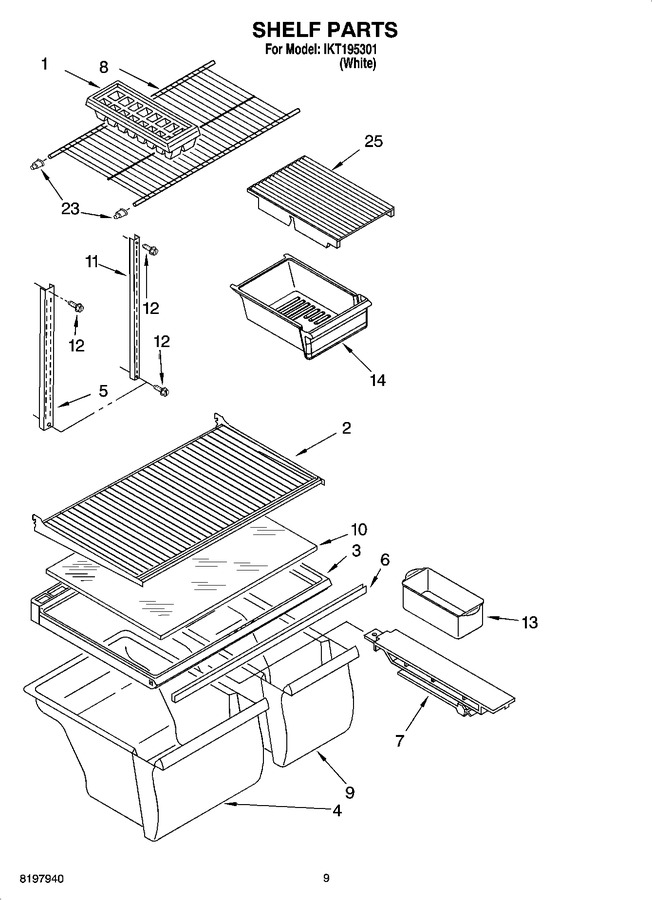

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 45.56 | ||||
| 2 | 2163856 | Shelf, Full Wire Cantilever |
|
- | |||||
| 3 | WP2314548 | Cover, Crisper (Replaces: 2195342) |
|
$ 247.46 | |||||
| 4 | W10854037 | Crisper Pan (Replaces: 2218124) |
|
Immediately | $ 170.66 | ||||
| 5 | 2202821 | Shelf, Ladder |
|
- | |||||
| 6 | WP2172748 | Support, Crisper Cover (Replaces: 2172541) |
|
$ 97.22 | |||||
| 7 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 34.74 | ||||
| 8 | 2189453 | Shelf, Freezer |
|
- | |||||
| 9 | W10856580 | Crisper Pan (Replaces: 2218123) |
|
Immediately | $ 168.60 | ||||
| 10 | WP2169921 | Glass, Crisper Cover (Replaces: 2169921) |
|
$ 246.60 | |||||
| 11 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 12 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 13 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 18.61 | |||||
| 14 | WP2218127K | Meat Pan (Replaces: 2218127K) |
|
$ 139.81 | |||||
| 23 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 25 | 2163848 | Pan Shelf, Cantilever |
|
$ 71.41 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 26.45 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 150.98 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 |
