SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

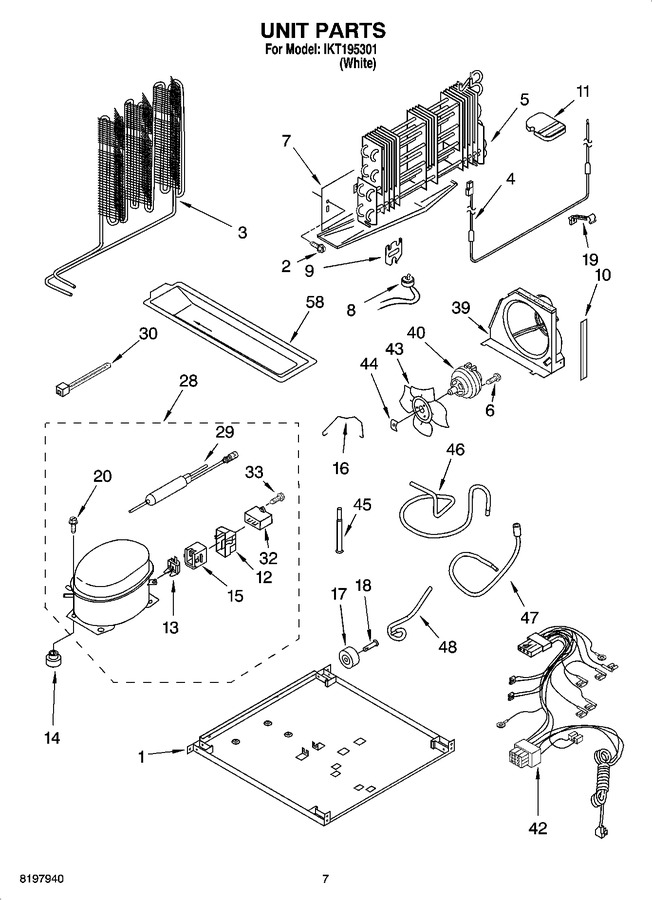

04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205341		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2212599		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2176300)				$ 104.62
5	2195391		Evaporator Assy.		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.19
7	2172619		Drain Pan		Appelez-nous	-
8	WP4387503		Defrost Bimetal   (Replaces: 2182380)			Immediately	$ 47.89
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	2201184		Support Block				$ 6.43
12	WP2162358		Cover   (Replaces: 4387731)				$ 90.75
13	WP4387938		Overload (includes Relay) (service (includes Relay))   (Replaces: 4387938)				$ 189.12
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
15	8201769		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2212964)				$ 183.82
16	2212998		Bale Strap, Compressor		Appelez-nous	-
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw, Compressor   (Replaces: 489373)				$ 7.42
28	W10823815		Compressor (includes Items 12, 13, 15, 29, 32, & 33) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: 2218376)				$ 674.15
29	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
32	WPW10662129		Capacitator   (Replaces: 2169373)			Immediately	$ 58.86
33	876811		Screw   (Replaces: 489373)				$ 7.42
39	2198921		Air Baffle		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2188537)			Immediately	$ 221.30
42	2187384		Wire Assy. Unit		Appelez-nous	-
43	2190685		Fan, Blade				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
45	2212603		Tube, Transition		Appelez-nous	-
46	2205294		Tube, Discharge				$ 54.65
47	2205293		Tube, Suction				$ 98.29
48	W11676464		Tube, Process   (Replaces: 2212848)				$ 103.44
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	2210451		Evap. Tray				$ 66.37
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
58	978028		Valve, Access (1/2)		Appelez-nous	-
