SELECT A DIAGRAM

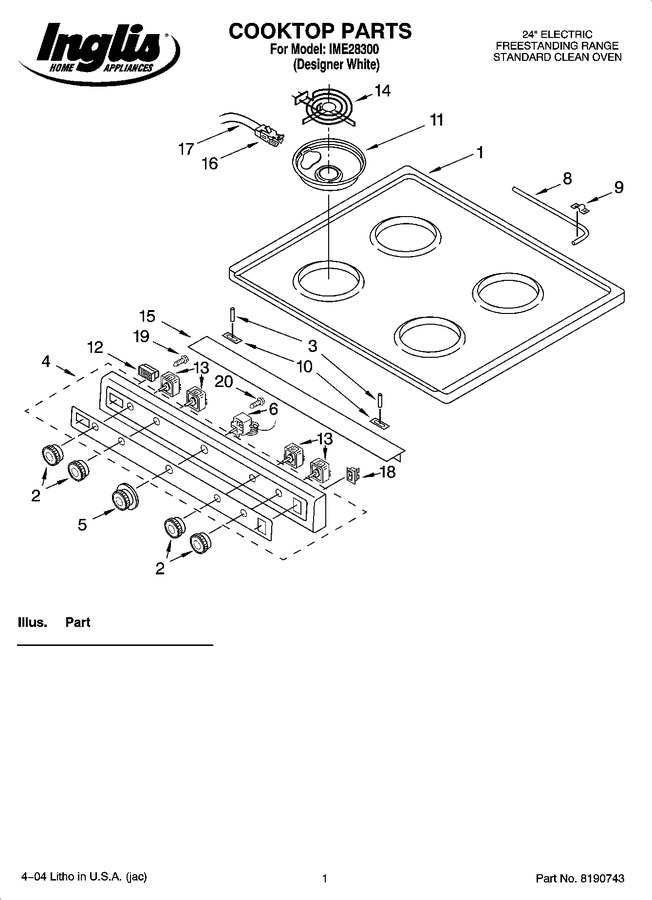

01 - Cooktop Parts


02 - Oven Door And Drawer Parts


03 - Chassis Parts


04 - Backguard Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190684		Cooktop		Appelez-nous	-
2	4364484		Knob, Burner (4)				$ 17.23
3	4364157		Strikepin, Cooktop (includes Nut)		Appelez-nous	-
4	8190745		Panel, Manifold (includes Inlay)		Appelez-nous	-
5	4364482		Knob, Thermostat				$ 24.52
6	8190613		Thermostat				$ 213.77
8	4364217		Rod, Support		Appelez-nous	-
9	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
9	4364218		Clip, Rod Support		Appelez-nous	-
10	4364158		Catch, Strike Pin		Appelez-nous	-
11	WPW10196406		Bowl, Chrome (6`` (3))   (Replaces: 4364193)			Immediately	$ 12.42
11	WPW10196405		Bowl, Chrome (8``(1))   (Replaces: 4364192)			Immediately	$ 15.56
12	4364345		Indicator, Surf/ov		Appelez-nous	-
13	4364179		Switch, Infinite (use W/6`` Element)				$ 73.94
13	WPW10197681		Switch, Infinite (use W/8`` Element)   (Replaces: 4364180)			Immediately	$ 150.89
14	4364175		Element, Surface (8`` (1))		Appelez-nous	-
14	WPW10345407		Element, Surface (6`` (3))   (Replaces: 4364174)			Immediately	$ 148.88
15	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
15	8190685		Cover, Switch		Appelez-nous	-
16	4364043		Screw, 6-32 X 1/4		Appelez-nous	-
16	4364177		Brkt, Receptacle		Appelez-nous	-
17	8190749		Receptacle, Elmnt (includes Wires) (black (rt. Rear))		Appelez-nous	-
17	8190750		Receptacle, Elmnt (includes Wires) (red (left Front))				$ 37.23
17	8190747		Receptacle, Elmnt (includes Wires) (yellow (rt. Front))		Appelez-nous	-
17	8190748		Receptacle, Elmnt (includes Wires) (blue (left Rear))		Appelez-nous	-
18	8190703		Switch, Oven Light		Appelez-nous	-
19	8190702		Screw		Appelez-nous	-
20	WP313808		Screw   (Replaces: 4364249)				$ 7.47

    View Diagram in Separate Window       Print Part List
