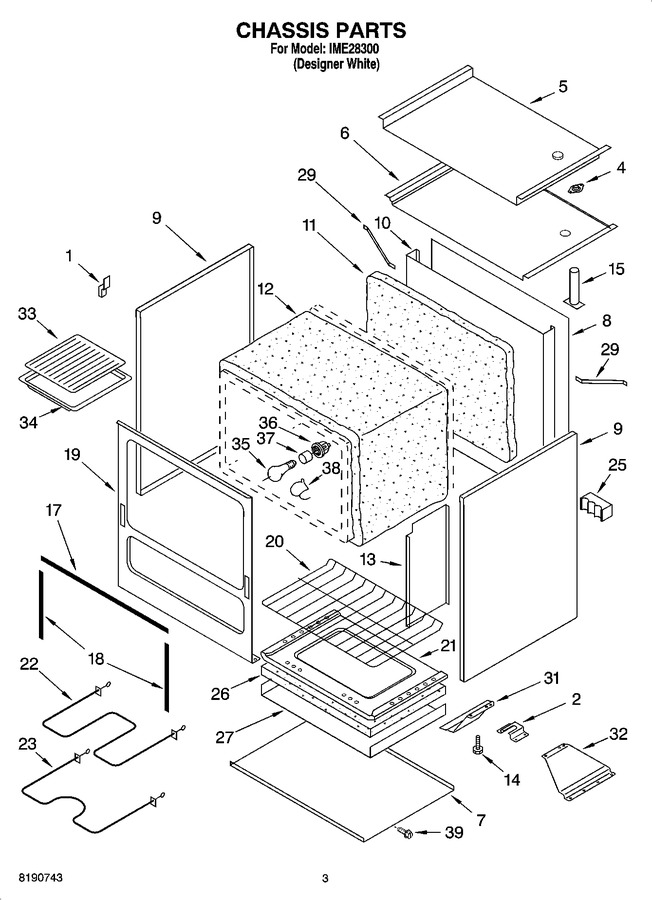

01 - Cooktop Parts


02 - Oven Door And Drawer Parts


03 - Chassis Parts


04 - Backguard Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364130		Clip, Thermo Bulb		Appelez-nous	-
2	8190785		Anti-tip Kit   (Replaces: 4364088)		Appelez-nous	-
4	4364246		Screw, 8 X 1/2		Appelez-nous	-
4	4364176		Switch, Limit				$ 198.31
5	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
5	8190686		Bottom, Upper Box		Appelez-nous	-
6	8190687		Bottom, Lower Box		Appelez-nous	-
6	4364255		Screw, 10 X 1/2		Appelez-nous	-
7	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
7	4364457		Bottom, Main		Appelez-nous	-
7	4364246		Screw, 8 X 1/2		Appelez-nous	-
8	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
8	8190688		Cover, Rear		Appelez-nous	-
9	8190689		Panel, Side		Appelez-nous	-
10	8190690		Back, Main		Appelez-nous	-
10	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
11	4364459		Insulation, Back		Appelez-nous	-
12	4364205		Insulation, Wrap		Appelez-nous	-
13	4364135		Baffle, Heat		Appelez-nous	-
14	W11673271		Leg, Leveler   (Replaces: 4364080)				$ 28.46
15	4364207		Vent, Oven Tube		Appelez-nous	-
17	4364461		Gasket, Oven Top		Appelez-nous	-
18	4364208		Gasket, Oven Side		Appelez-nous	-
19	8190695		Frame, Front		Appelez-nous	-
20	4364462		Rack, Oven		Appelez-nous	-
21	8190696		Bottom, Oven		Appelez-nous	-
22	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
22	4364185		Element, Broil				$ 65.48
23	4364151		Screw, 8-18 X 3/8		Appelez-nous	-
23	4364186		Element, Bake				$ 71.53
25	4364257		Hex Nut, 10-32		Appelez-nous	-
25	4364256		Screw, 8a X 1		Appelez-nous	-
25	WPW10245259		Block, Terminal   (Replaces: 4364187)			Immediately	$ 31.65
26	4364459		Insulation, Bottom		Appelez-nous	-
27	8190697		Retainer, Bottom		Appelez-nous	-
29	4364153		Screw, 10-12 X 1/2		Appelez-nous	-
29	4364133		Brace, Back		Appelez-nous	-
31	4364090		Support, Rt. Rear		Appelez-nous	-
32	4364089		Support, Lt. Rear		Appelez-nous	-
33	4364065		Grill, Broiler		Appelez-nous	-
34	4364216		Pan, Broiler		Appelez-nous	-
35	8009		Bulb, Light   (Replaces: 4364092)			Immediately	$ 17.51
36	4364091		Receptacle, Light		Appelez-nous	-
37	4364093		Ring, Oven Light		Appelez-nous	-
38	4364350		Guard, Oven Light		Appelez-nous	-
39	8190701		Screw, Shoulder		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
