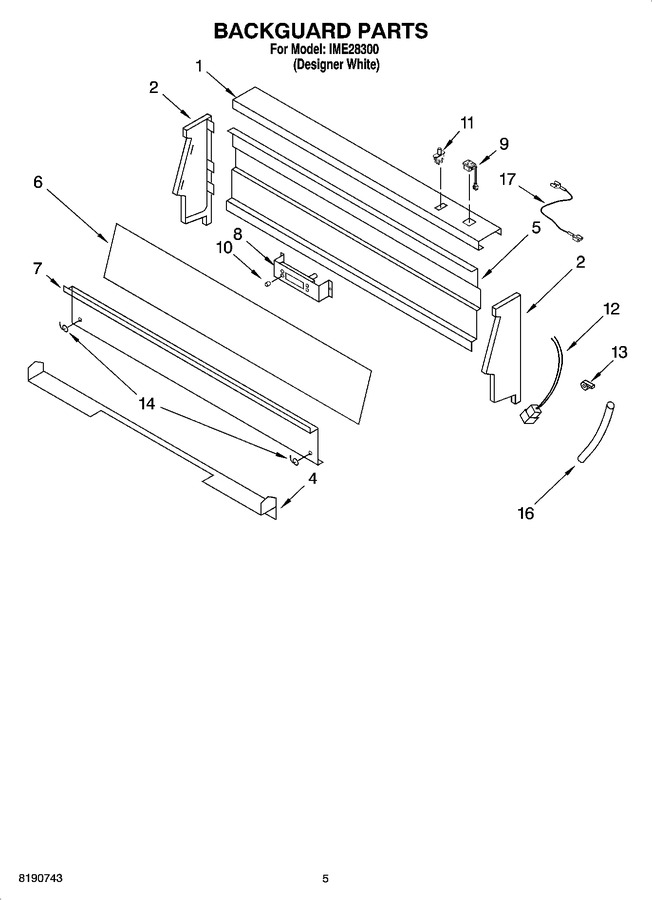

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190715		Trim, Top		Appelez-nous	-
2	8190717		Endcap (right)		Appelez-nous	-
2	8190716		Endcap (left)		Appelez-nous	-
4	8190718		Support, Backguard		Appelez-nous	-
5	8190719		Cover, Rear Bkgd		Appelez-nous	-
6	8190720		Glass, Backguard		Appelez-nous	-
7	8190721		Backsplash		Appelez-nous	-
8	4364488		Timer-clock				$ 189.72
9	8190722		Outlet, Electrical		Appelez-nous	-
10	8190723		Button, Timer		Appelez-nous	-
11	8190724		Breaker, Circuit		Appelez-nous	-
12	8190725		Harness, Backguard		Appelez-nous	-
13	4364342		Relief, Strain		Appelez-nous	-
14	4364102		Pin, Hinge		Appelez-nous	-
16	4364344		Sleeve, Harness		Appelez-nous	-
17	8190726		Wire, Jumper		Appelez-nous	-
	8190704		Harness, Wire (14 Ga. Blk Jumpr)		Appelez-nous	-
	8190711		Wire, Red Ind.		Appelez-nous	-
	8190712		Harness, Wire (l1 To Term Block)		Appelez-nous	-
	8190713		Harness, Wire (red Bake/broil)		Appelez-nous	-
	8190714		Harness, Wire Lmt Swtch/term Blk		Appelez-nous	-
	9757962		Use & Care Guide		Appelez-nous	-
	9758159		Inst Instructions		Appelez-nous	-
	8190751		Template, Anti-tip		Appelez-nous	-
	8190705		Harness, Wire (18 Ga Blk Jumper)		Appelez-nous	-
	8190706		Harness, Wire (14 Ga Red Jumper)		Appelez-nous	-
	8190707		Wire, Black Bake		Appelez-nous	-
	8190754		Cord, Power		Appelez-nous	-
	8190755		Relief, Strain (power Cord)		Appelez-nous	-
	8190756		Screw (strain Relief)		Appelez-nous	-
	8190708		Wire, Yellow Brlr		Appelez-nous	-
	8190709		Wire, Blue Switch		Appelez-nous	-
	8190710		Wire, Orange Ind.		Appelez-nous	-
