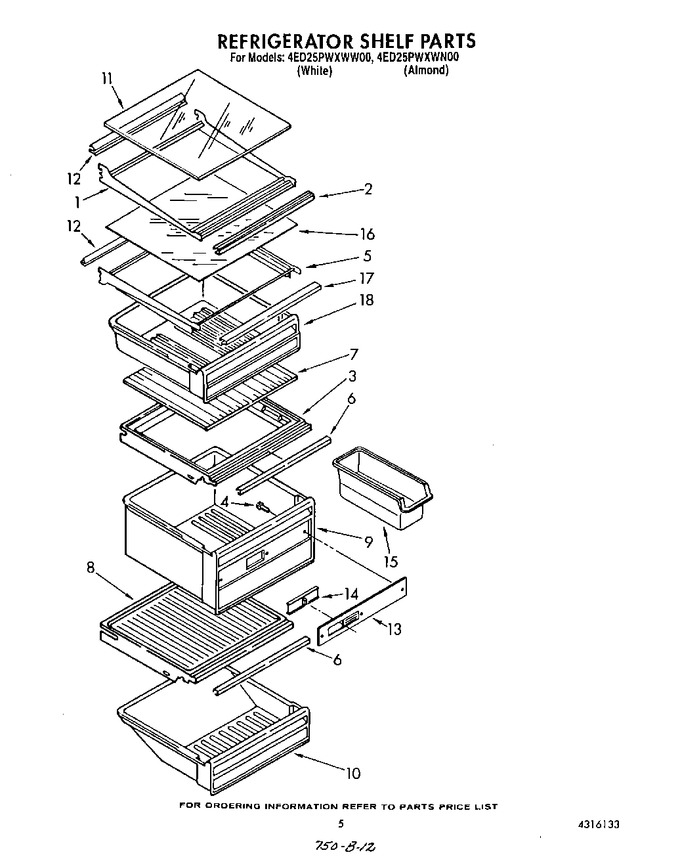

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118413		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	1114302		Trim, Shelf		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2148309)				$ 181.71
4	489226		Screw (3)		Appelez-nous	-
5	2148122		Pan Shelf & Slide Assembly		Appelez-nous	-
6	1110795		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	WP2148298		Cover, Meat Pan   (Replaces: 2148298)				$ 174.59
9	2148377		Pan, Crisper		Appelez-nous	-
10	2148091		Pan, Meat		Appelez-nous	-
11	2148237		Glass, Shelf		Appelez-nous	-
12	1114306		Reflector, Shelf		Appelez-nous	-
13	2148378		Front, Crisper Pan		Appelez-nous	-
14	1116718		Slide		Appelez-nous	-
15	WP982704		Container   (Replaces: 2148079)				$ 31.00
16	2148300		Glass, Shelf		Appelez-nous	-
17	2148301		Trim, Shelf		Appelez-nous	-
18	2148005		Snack Bin		Appelez-nous	-
