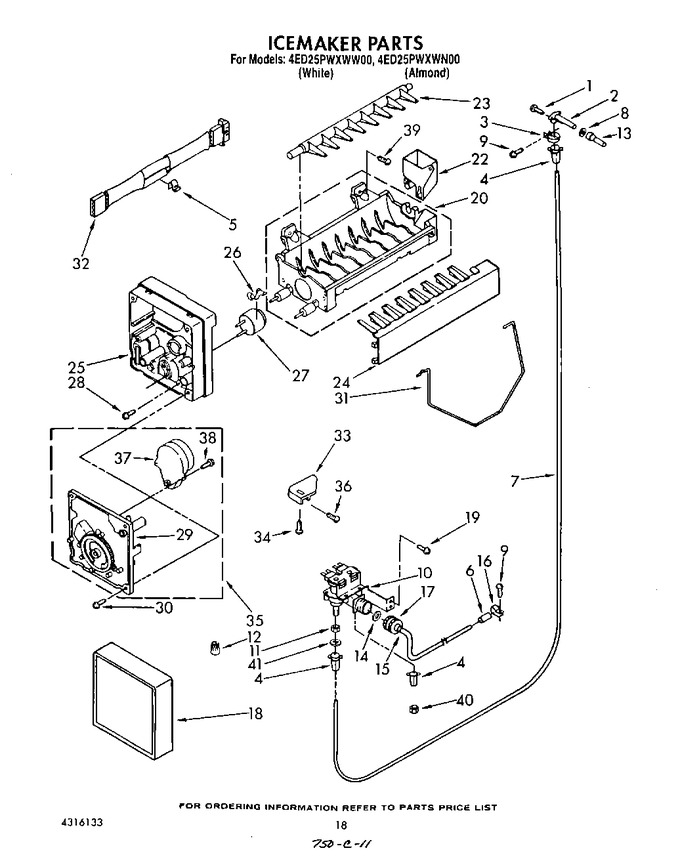

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.99
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628288)				$ 10.57
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
7	W10823511		Tube, Water   (Replaces: 653415)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WP489478		Screw   (Replaces: 489242)				$ 7.75
10	4318046		Valve, Solenoid   (Replaces: 628275)			Immediately	$ 92.87
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
12	227991		Connector Wire		Appelez-nous	-
13	1114645		Tube, Water Inlet		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628329		Cover		Appelez-nous	-
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 21.16
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Stripper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 628326)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	8533917		Screw   (Replaces: 489322)				$ 13.37
29	W10190935		Module Assembly   (Replaces: 628332)			Immediately	$ 110.07
30	WP681249		Screw, 8-18 X 11/16   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 628187)			Immediately	$ 60.20
32	WP2187464		Harness, Wiring   (Replaces: 628281)				$ 124.57
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
34	00489128		Screw, 8-32 X 27/64   (Replaces: 489128)				$ 859.97
35	W10190935		Module Assembly (includes Items 29, 37 & 38)   (Replaces: 483105)			Immediately	$ 110.07
36	486214		Screw 8-15 X 1/2		Appelez-nous	-
37	W10190935		Motor   (Replaces: 628332)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.29
39	WP488163		Screw (2)   (Replaces: 488208)				$ 7.54
40	488795		Nut, Compression		Appelez-nous	-
41	00753257		``o`` Ring   (Replaces: 488819)			Immediately	$ 295.49
100	4317943		Complete Icemaker Assembly   (Replaces: 4211173)			Immediately	$ 188.95
