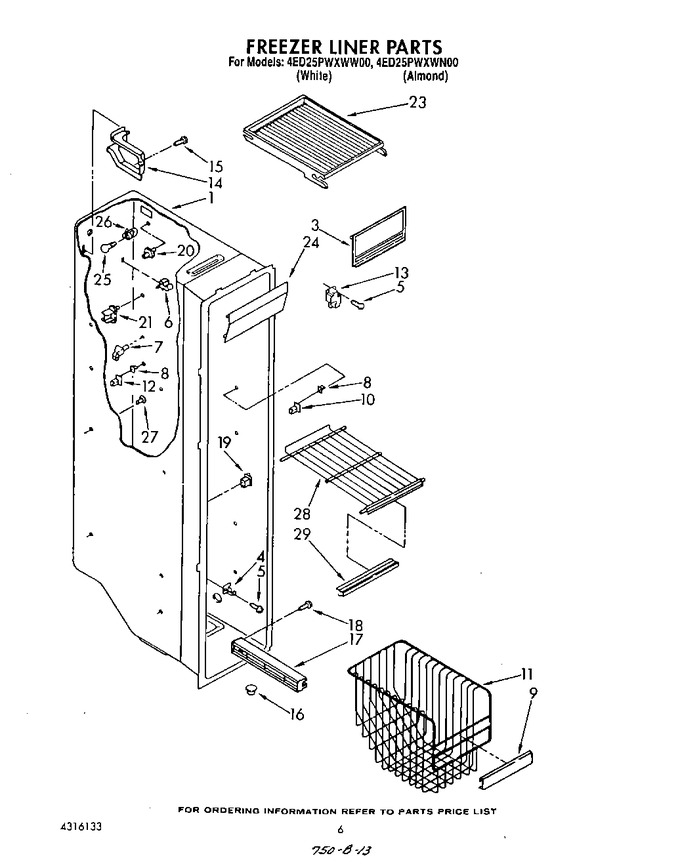

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 3 | 1115254 | Door, Ice Compartment |
|
- | |||||
| 4 | 1108436 | Evaporator, Support |
|
- | |||||
| 5 | WP489478 | Screw, 8 X 1/2 (Replaces: 489242) |
|
$ 7.75 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 7 | 1115317 | Support, Stud (4) |
|
- | |||||
| 8 | 946355 | Support Stud (8) |
|
- | |||||
| 9 | 2148296 | Trim, Basket |
|
- | |||||
| 10 | 946356 | Stud, Front (3) |
|
- | |||||
| 11 | 2152090 | Basket, Slope |
|
- | |||||
| 12 | 1106982 | Stud, Rear (3) |
|
- | |||||
| 13 | 942842 | Terminal Block |
|
- | |||||
| 14 | 1114607 | Wiring Cover |
|
- | |||||
| 15 | WP488729 | Screw (Replaces: 489176) |
|
Immediately | $ 7.79 | ||||
| 16 | 942768 | Fitting, Drain |
|
- | |||||
| 17 | 1113678 | Shelf Track (right Side (4)) |
|
- | |||||
| 17 | 1113679 | Shelf Track (left Side (4)) |
|
- | |||||
| 18 | W11693756 | Screw (Replaces: 487042) |
|
Immediately | $ 14.06 | ||||
| 19 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 20 | 4388538 | Stud (4) (Replaces: 1110718) |
|
Immediately | $ 31.34 | ||||
| 21 | 1115386 | Stud, Shelf (4) |
|
- | |||||
| 23 | 1118294 | Shelf, Top Compartment |
|
- | |||||
| 24 | 1115389 | Light Lens |
|
- | |||||
| 25 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 26 | 4387478 | Light Socket (Replaces: 1129370) |
|
Immediately | $ 110.16 | ||||
| 27 | 1110779 | Grommet (8) |
|
- | |||||
| 28 | 1116956 | Shelf (3) |
|
- | |||||
| 29 | 1120547 | Trim, Shelf (3) |
|
- |
