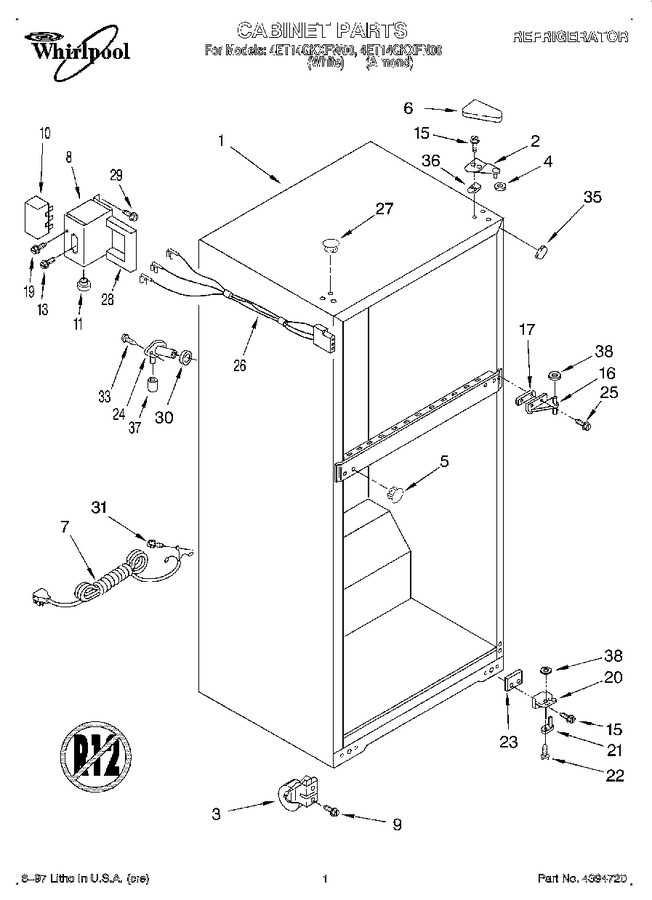

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner, Lit/optional
04 - Unit
05 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WP2189412 | Hinge, Top (Replaces: 2157591) |
|
$ 114.50 | |||||
| 3 | 9790461 | Roller-front |
|
- | |||||
| 4 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 4 | WP487576 | Washer-nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 5 | 1129062 | Hole Plug |
|
- | |||||
| 6 | WP2213360 | Cover-hinge (white) (Replaces: 2160403) |
|
$ 19.23 | |||||
| 6 | 2160404 | Cover, Hinge (almond) |
|
- | |||||
| 7 | 1129332 | Service Cord |
|
- | |||||
| 8 | 2158579 | Enclosure, Term. |
|
- | |||||
| 9 | 9791768 | Screw |
|
- | |||||
| 10 | 1129346 | Terminal Block |
|
- | |||||
| 11 | 1129449 | Bushing |
|
- | |||||
| 13 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 10.82 | ||||
| 15 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 78.16 | |||||
| 17 | 2166043 | Shim, Hinge Center (Replaces: 2183143) |
|
$ 66.44 | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 20 | WP2325482 | Hinge Butt (Replaces: 2166094) |
|
Immediately | $ 76.19 | ||||
| 21 | 9791682 | Hinge-pin Bott. |
|
$ 26.60 | |||||
| 22 | 488714 | Screw |
|
$ 5.48 | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2183182) |
|
Immediately | $ 7.77 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.99 | ||||
| 25 | WP999367 | Screw (Replaces: 489105) |
|
$ 7.86 | |||||
| 26 | 2209657 | Wire Assembly (Replaces: 2174913) |
|
- | |||||
| 27 | 2151653 | Hole Plug (6) (almond) |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (white) (Replaces: 2151652) |
|
$ 21.78 | |||||
| 28 | 2167227 | Gasket |
|
- | |||||
| 29 | WP250830 | Screw (Replaces: 489048) |
|
$ 7.95 | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 31 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 33 | WPW10141645 | Screw, 8 X 1/2 A (Replaces: 489084) |
|
$ 7.67 | |||||
| 35 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 7.70 | |||||
| 35 | 2166004 | Corner Filler (almond) |
|
- | |||||
| 36 | 1123517 | Shim |
|
- | |||||
| 37 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.26 | |||||
| 38 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 |
