SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner, Lit/optional

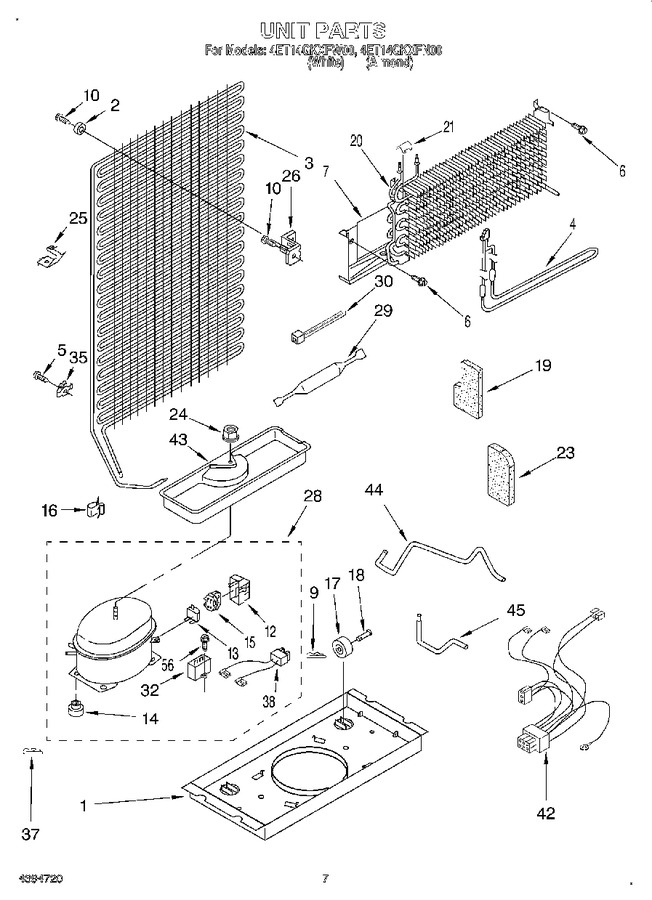

04 - Unit


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175260		Support Plate, Compressor		Appelez-nous	-
2	944772		Bumper		Appelez-nous	-
3	WP2252730		Condenser   (Replaces: 2195857)				$ 273.61
4	WP2167357		Heater, Defrost   (Replaces: 2167357)				$ 157.28
5	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
7	2166097		Heat Shield		Appelez-nous	-
9	WP2174706		Clip-roller   (Replaces: 2174706)				$ 10.98
10	WP488163		Screw,   (Replaces: 488725)				$ 7.54
12	WP2162358		Cover   (Replaces: 2162358)				$ 90.75
13	2169410		Overload (includes Relay)				$ 100.28
14	WP2163786		Grommet (production)   (Replaces: 2163786)				$ 7.96
14	876811		Grommet (service)   (Replaces: 1100826)				$ 7.42
15	N/A		Start Relay (see Overload)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	4388239		Roller   (Replaces: 9791758)			Immediately	$ 72.37
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 18.21
19	2166053		Wedge-evaporator		Appelez-nous	-
20	WP2263919		Evaporator Assy.   (Replaces: 2166055)				$ 309.15
21	9791833		Clip, Evaporator Tube		Appelez-nous	-
23	2166054		Wedge-evaporator		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 12.24
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	944791		Bracket, Condenser		Appelez-nous	-
28	2169447		Compressor (includes Items 12, 13, 14, 15, 32, 38 & 56) (also Order)		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 86.33
28	482801		Installation Kit				$ 119.50
29	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 52.57
30	WPW10339879		Strap   (Replaces: 2155774)				$ 7.90
32	WP2201147		Capacitor   (Replaces: 2154718)				$ 128.97
35	1105406		Clip, Tube		Appelez-nous	-
37	24364001		Clip, Compressor		Appelez-nous	-
38	2174998		Wire Assembly		Appelez-nous	-
42	2167479		Wire Assy. Unit		Appelez-nous	-
43	1101002		Evaporator Tray		Appelez-nous	-
44	2174791		Tube, Discharge		Appelez-nous	-
45	W11661102		Tube, Process   (Replaces: 2174739)				$ 29.01
56	482278		Start Kit		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 130.71
56	876764		Valve, Access(3/16``)			Immediately	$ 91.35
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
56	WP489128		Screw   (Replaces: 488500)				$ 10.88
56	978026		Valve, Access (5/16``)			Immediately	$ 128.09
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
56	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
