SELECT A DIAGRAM

01 - Cabinet

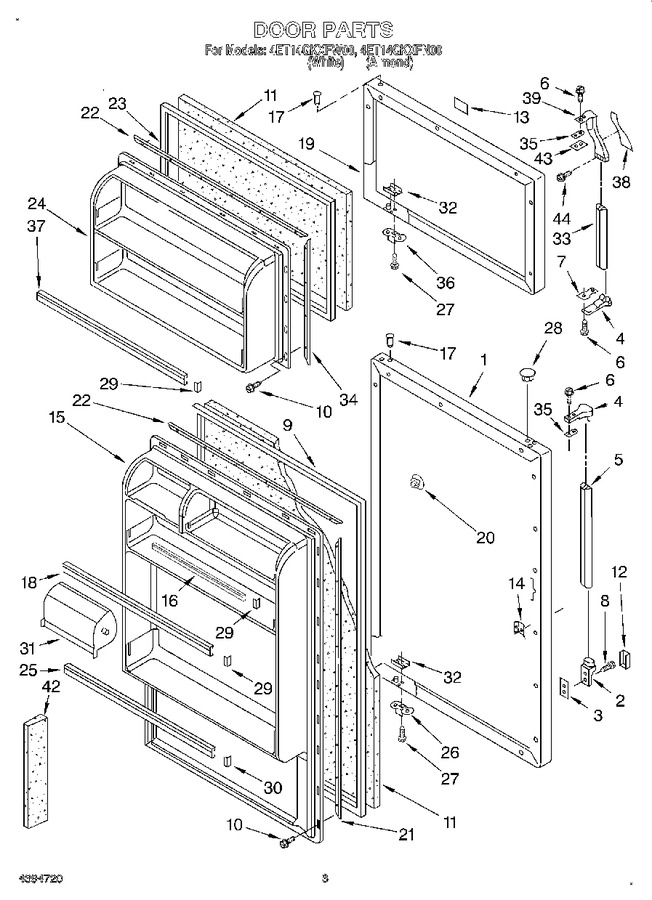

02 - Door


03 - Liner, Lit/optional


04 - Unit


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195835		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2195836		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
2	935105		End Cap				$ 32.80
3	935076		Shim		Appelez-nous	-
4	944157		End Cap, Handle		Appelez-nous	-
5	2157109		Handle Center (white Model)		Appelez-nous	-
5	2157110		Handle, Center (almond)		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	943187		Shim				$ 25.14
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2188448A		Door Gasket, Magnetic   (Replaces: 9790369)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	987873		Cover, Screw		Appelez-nous	-
13	2183209		Nameplate (almond Model)		Appelez-nous	-
13	2157907		Nameplate (white)				$ 6.56
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2173725		Panel, Interior Door (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf (upper)   (Replaces: 2163630)			Immediately	$ 63.40
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	WP2163629		Trim, Door (middle)   (Replaces: 2163631)			Immediately	$ 63.40
19	2195834		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
19	2195833		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
20	1122654		Hole Plug (almond)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.40
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2165383)			Immediately	$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	2163628		Trim, Door Shelf (lower)		Appelez-nous	-
26	944036		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
28	989196		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	2174801		Compartment Door		Appelez-nous	-
32	2183198		Tap Plate		Appelez-nous	-
33	2174987		Handle, F.c. (almond Model)		Appelez-nous	-
33	2150149		Handle, F.c. (white Model)		Appelez-nous	-
34	1122553		Retainer, Gasket		Appelez-nous	-
35	943188		Spacer				$ 7.80
36	944035		Stop, Door		Appelez-nous	-
37	WP2163629		Trim-door (2)   (Replaces: 2163629)			Immediately	$ 63.40
38	1108828		Insert, Handle End (white)		Appelez-nous	-
38	1108830		Insert, Handle End (almond)		Appelez-nous	-
39	944163		Handle End,				$ 53.54
42	2196665		Support		Appelez-nous	-
43	935074		Shim		Appelez-nous	-
44	489022		Screw		Appelez-nous	-
