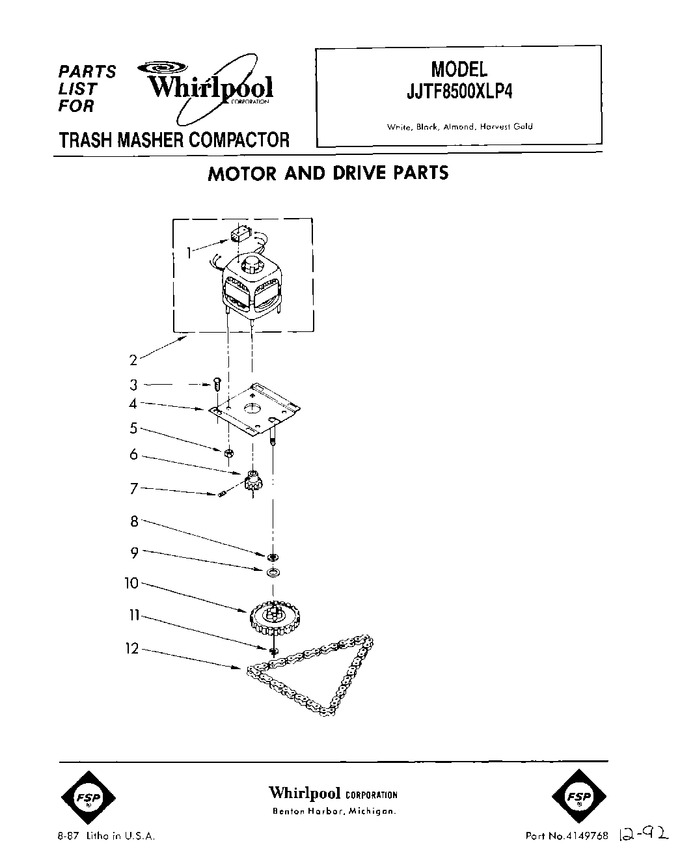

01 - Motor And Drive, Lit/optional
02 - Frame
03 - Powerscrew And Ram
04 - Cabinet And Control
05 - Container
06 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439651 | Switch, Motor (Replaces: 777710) |
|
$ 326.85 | |||||
| 2 | W10439651 | Motor, Drive (includes No.1) (Replaces: 780360) |
|
$ 326.85 | |||||
| 3 | 776593 | Screw. 1/4-20 X 1/2 (4) |
|
- | |||||
| 4 | 776327 | Plate, Drive Motor |
|
- | |||||
| 5 | WP776338 | Locknut, 10-32 (4) (Replaces: 776338) |
|
$ 19.35 | |||||
| 6 | 882699 | Gear, Drive (Replaces: 776839) |
|
$ 123.55 | |||||
| 7 | WP454512 | Pin, Slotted Spring (Replaces: 454512) |
|
$ 7.54 | |||||
| 8 | 776035 | Washer, Wave |
|
$ 14.05 | |||||
| 9 | W11214485 | Washer, Thrust (Replaces: 297462) |
|
$ 13.56 | |||||
| 10 | 882699 | Gear, Driven (Replaces: 777124) |
|
$ 123.55 | |||||
| 11 | WP776036 | Clip, Ring (Replaces: 776036) |
|
$ 7.43 | |||||
| 12 | LIT4149762 | English (list, Repair Parts) |
|
- | |||||
| 12 | 780477 | Chain, Drive |
|
$ 217.07 | |||||
| 12 | LIT780511 | Guide, Use & Care (french) |
|
- | |||||
| 12 | LIT780488 | Sheet, Tech (french) |
|
- | |||||
| 12 | LIT780512 | Guide, Use & Care (english) |
|
- | |||||
| 12 | LIT780142 | English (installation, Instructions) |
|
- | |||||
| 12 | LIT780487 | English (sheet, Tech) |
|
- |
