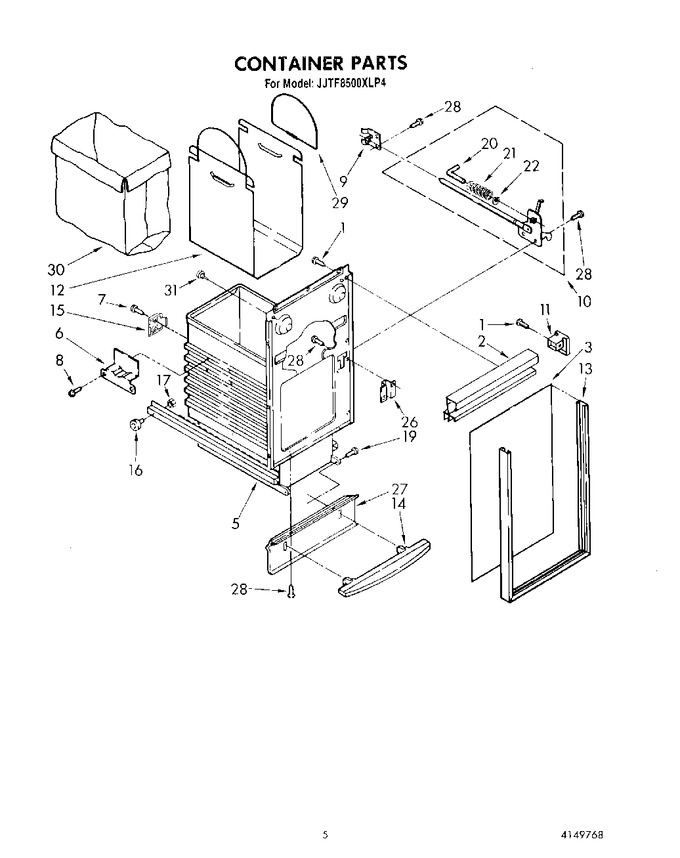

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
2	780184		Handle, Container		Appelez-nous	-
3	777941		Panel, Container Front (black & White)				$ 36.40
3	777762		Panel, Container Front (almond & Harvest Gold)		Appelez-nous	-
5	675296		Container Assembly		Appelez-nous	-
6	776523		Cam, Spray Actuator (2)				$ 21.17
7	4149395		Screw (2)		Appelez-nous	-
8	WP489069		Screw, 8-18 X 1/2   (Replaces: 777465)			Immediately	$ 8.40
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 775740)				$ 182.53
11	780188		Cap, Handle End, L.h.		Appelez-nous	-
11	780189		Cap, Handle End R.h.		Appelez-nous	-
12	13030RP		Carrier, Bag (incl. Illus. 29)   (Replaces: 776989)			Immediately	$ 58.33
13	777345		Trim, Container		Appelez-nous	-
14	882657		Pedal, Foot   (Replaces: 777172)				$ 156.63
15	9871125		Spring, Safety Switch   (Replaces: 4149378)				$ 29.37
16	WP9871602		Bearing Roller Container (2)   (Replaces: 776261)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
19	WP780263		Screw, Shoulder 8-16 X 7/16 (2)   (Replaces: 780263)				$ 8.34
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring				$ 93.80
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
26	775665		Plate, Latch				$ 62.39
27	WPW10242557		Guard, Toeplate   (Replaces: 777328)				$ 142.53
28	WP489069		Screw, 8 X 1/2   (Replaces: 776076)			Immediately	$ 8.40
29	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 36.99
30	675186		Bag, Refuse (12 Pk)				$ 22.83
31	775785		Bumper, Container (2)		Appelez-nous	-
