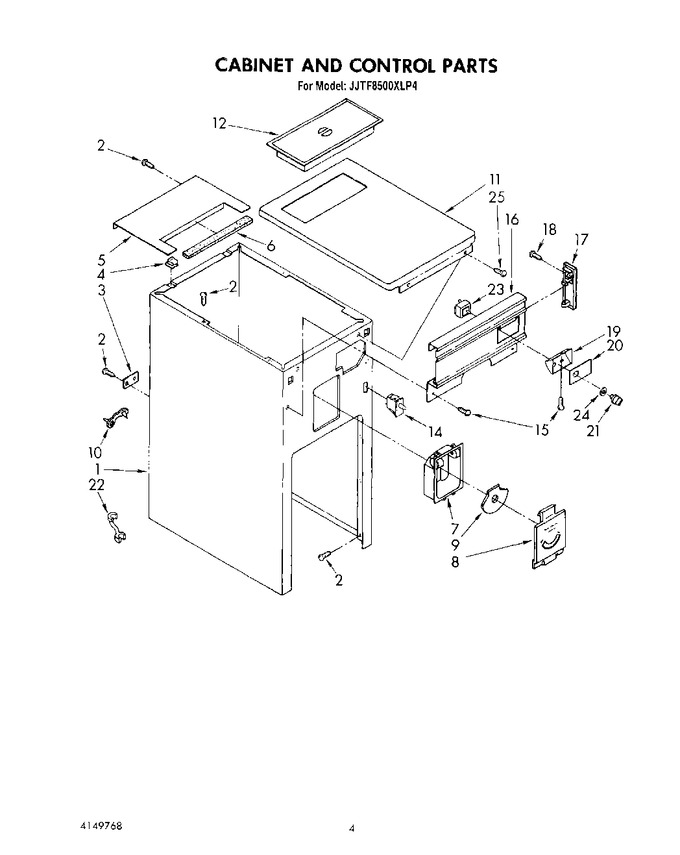

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608843		Cabinet		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2   (Replaces: 776076)			Immediately	$ 8.40
3	775676		Plate, Power Cord		Appelez-nous	-
4	776017		Clip, Toe Mount		Appelez-nous	-
5	608351		Plate, Bag Storage		Appelez-nous	-
6	776780		Barrier, Glass		Appelez-nous	-
7	777642		Compartment, Air Flow		Appelez-nous	-
8	608783		Cover, Air Flow		Appelez-nous	-
9	608782		Dail, Air Flow		Appelez-nous	-
10	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
11	608430		Top, Cabinet (vinyl Clad)		Appelez-nous	-
12	780081		Fame & Lid Assembly		Appelez-nous	-
14	780421		Switch, Drawer Tilt		Appelez-nous	-
15	776559		Screw, 6-20 X 3/8		Appelez-nous	-
16	780183		Escutcheon		Appelez-nous	-
17	780179		End Cap, Escutcheon (l.h.)		Appelez-nous	-
17	780180		End Cap, Escutcheon R.h.		Appelez-nous	-
18	WP489069		Screw, 8-18 X 1/2 (4)   (Replaces: 780230)			Immediately	$ 8.40
19	780190		Bezel, Switch		Appelez-nous	-
20	780489		Insert, Bezel		Appelez-nous	-
21	780191		Knob, Switch		Appelez-nous	-
22	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
23	675382		Switch, Rotary   (Replaces: 780379)				$ 246.48
24	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
25	776493		Screw, Sm (black Head)		Appelez-nous	-
