SELECT A DIAGRAM

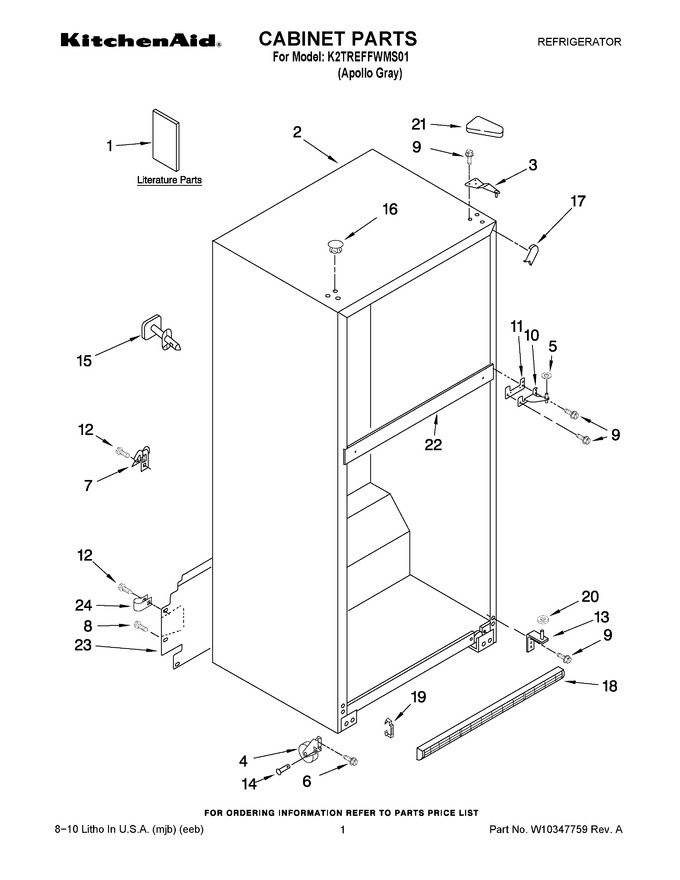

01 - Cabinet Parts


02 - Liner Parts


03 - Freezer Door Parts


04 - Shelf Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10279295		Energy Label		Appelez-nous	-
1	W10312248		Use & Care Tri		Appelez-nous	-
1	787316		Do-it-yourself Manual, Icemaker		Appelez-nous	-
1	W10312254		Service & Wiring Sheet		Appelez-nous	-
1	W10312247		Use & Care Bi		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 99.45
4	WP2166108		Roller, Front (2)   (Replaces: 2166108)			Immediately	$ 34.76
5	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
6	WP3400504		Screw (2)   (Replaces: 3400504)				$ 7.55
7	549193		Clamp-cord				$ 14.06
8	WP489427		Screw   (Replaces: 489427)				$ 7.84
9	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
10	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
11	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
12	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
13	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
14	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
15	N/P		Fitting, Water Tube (not Serviced)		Appelez-nous	-
16	WPW10520307		Hole Plug (6) (apollo Gray)   (Replaces: 2254506)			Immediately	$ 7.55
17	W10851579		Corner Filler (2) (apollo Gray)   (Replaces: W10283961)			Immediately	$ 7.55
18	2254530		Grille (includes Illus. 19) (apollo Gray)		Appelez-nous	-
19	2189356		Clip, Grille (2)				$ 5.70
20	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
21	W10853622		Cover, Hinge (apollo Gray)   (Replaces: 2254510)			Immediately	$ 82.46
22	N/P		Rail, Center (not Serviced)		Appelez-nous	-
23	2254576		Cover, Unit				$ 48.13
24	WP488366		Tube Clamp   (Replaces: 489385)				$ 11.92

    View Diagram in Separate Window       Print Part List
