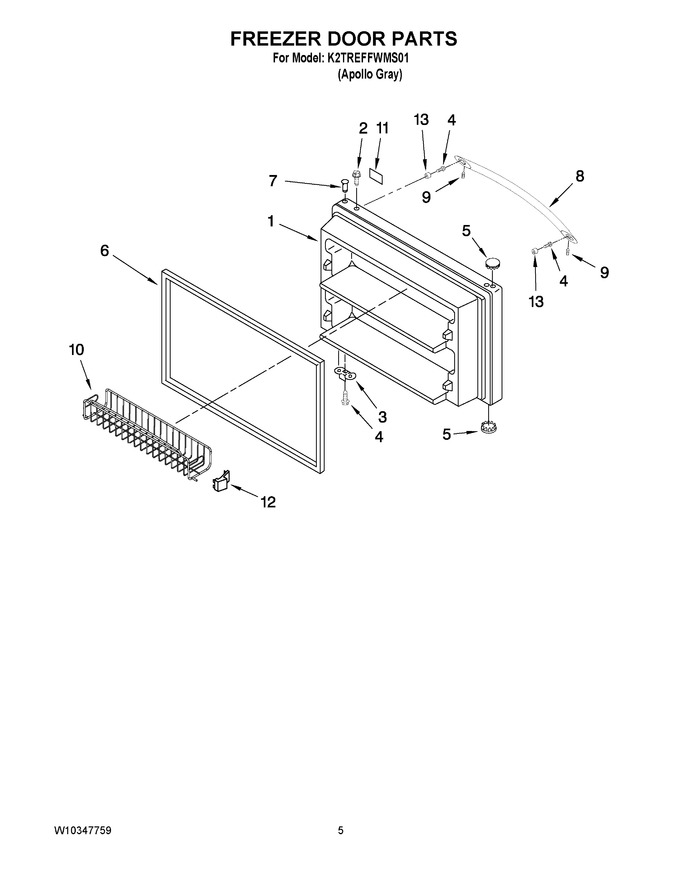

03 - Freezer Door Parts
04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10280347 | Freezer Door (includes Illus. 6 & 7) (stainless Steel) |
|
- | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 3 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 4 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 5 | WPW10520307 | Hole Plug (2) (Replaces: 2254506) |
|
Immediately | $ 7.55 | ||||
| 6 | W10249196 | Door Gasket, Magnetic (mist Beige) (Replaces: W10171479) |
|
Immediately | $ 279.10 | ||||
| 7 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 8 | W10274642 | Handle, Freezer (includes Illus. 11) |
|
- | |||||
| 9 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 10 | 2300796 | Basket, Door (2) |
|
$ 84.50 | |||||
| 11 | W10046610 | Nameplate (apollo Gray) |
|
$ 33.40 | |||||
| 12 | 2300799 | Endcap, Bskt.(r) |
|
$ 47.65 | |||||
| 12 | 2300798 | Endcap, Bskt.(l) |
|
$ 16.82 | |||||
| 13 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 |
