01 - Cabinet Parts

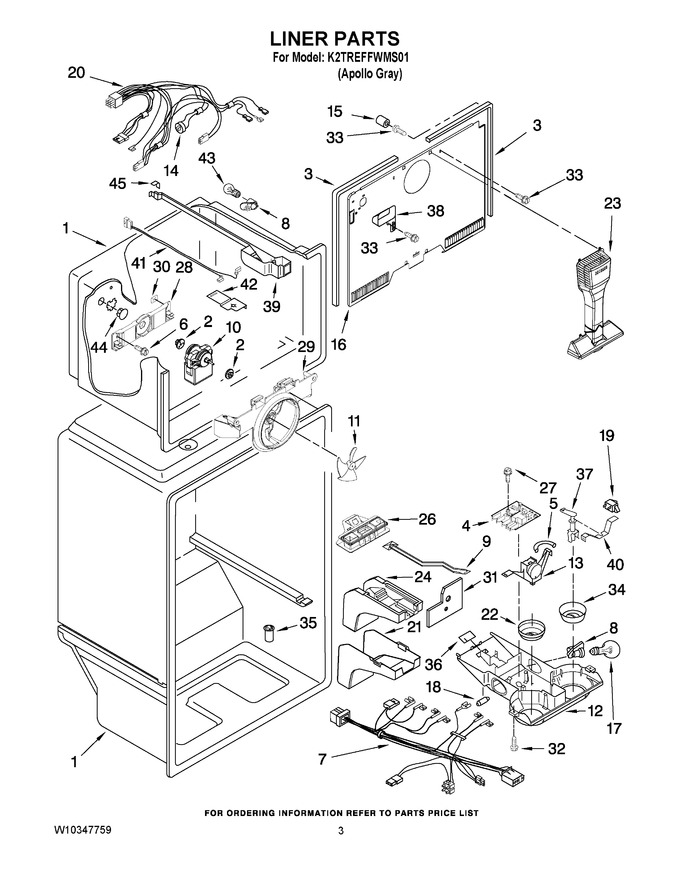

02 - Liner Parts
03 - Freezer Door Parts
04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | WP2304099 | Adaptive Defrost Control (Replaces: 2304099) |
|
Immediately | $ 296.24 | ||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | 2310057 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: W10208121) |
|
Immediately | $ 70.17 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2212982 | Control Box |
|
- | |||||
| 13 | 2200859 | Thermostat Assembly (includes Illus. 5 & 18) |
|
$ 114.36 | |||||
| 14 | WP2321800 | Defrost Bi-metal (Replaces: 2321800) |
|
Immediately | $ 126.91 | ||||
| 15 | WP487996 | Plastic Closure (Replaces: 487996) |
|
$ 8.67 | |||||
| 16 | 2320193 | Cover, Evaporator |
|
$ 245.23 | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | W10129803 | Wire Assembly, Freezer Compartment (includes Illus. 14) |
|
$ 140.33 | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 31.91 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 108.24 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 131.03 | ||||
| 26 | 2204690 | Air Separator Assembly |
|
$ 135.07 | |||||
| 27 | 8534009 | Screw |
|
- | |||||
| 28 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 29 | 2254453 | Bracket, Fan Motor |
|
$ 45.87 | |||||
| 30 | 2320183 | Retainer-screw |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 33 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 34 | 2302536 | Knob, Damper |
|
$ 27.08 | |||||
| 35 | WP2210509 | Release Valve (Replaces: 2171931) |
|
$ 99.15 | |||||
| 36 | WP2205079 | Seal, Rear Thermostat (Replaces: 2205079) |
|
$ 10.01 | |||||
| 37 | 2179859 | Damper Post |
|
- | |||||
| 38 | 2205003 | Cover, Inlet Tube |
|
- | |||||
| 39 | 2300418 | Housing Base |
|
$ 44.10 | |||||
| 40 | 2163810 | Bracket, |
|
$ 6.01 | |||||
| 41 | 2187601 | Wiring Harness, Freezer Light |
|
- | |||||
| 42 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 43 | 4396822 | Light Bulb (Replaces: 850166) |
|
Immediately | $ 13.58 | ||||
| 44 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 45 | 2166284 | Gasket, Rear Damper Knob |
|
$ 6.06 |
