View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

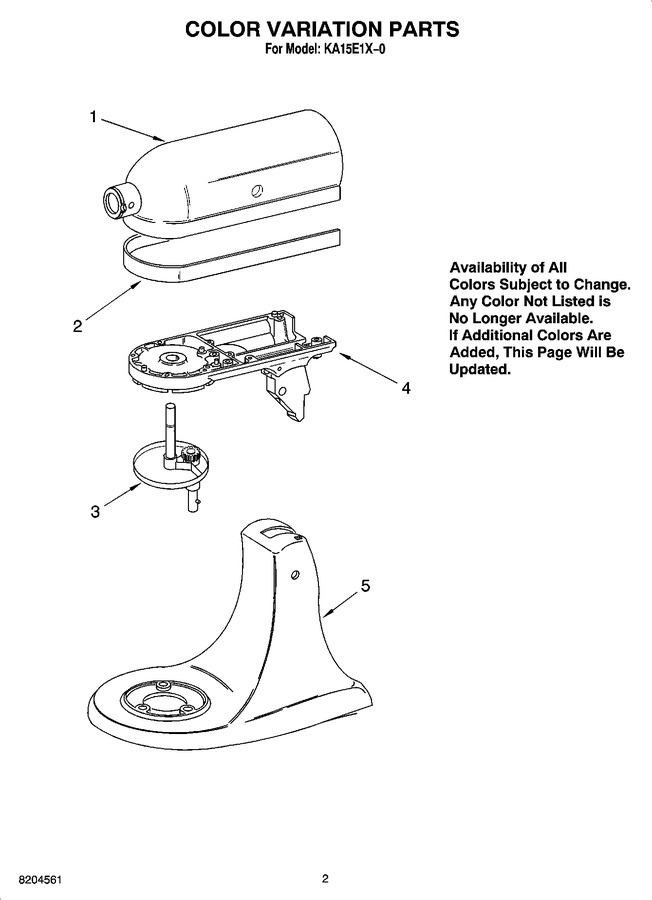

01 - Color Variation Parts
02 - Base And Pedestal Unit
03 - Case, Gearing, And Planetary Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Gearcase Motor Housing-white |
|
$ 88.20 | |||||
| 2 | 9708401 | Trim Band (white) |
|
- | |||||
| 3 | WP9708172 | Planetary (white) (Replaces: 9708172) |
|
Immediately | $ 73.84 | ||||
| 4 | 9703389 | Lower Gearcase (white) |
|
$ 67.14 | |||||
| 5 | 9703597 | Pedestal (white) |
|
- |
