SELECT A DIAGRAM
01 - Color Variation Parts

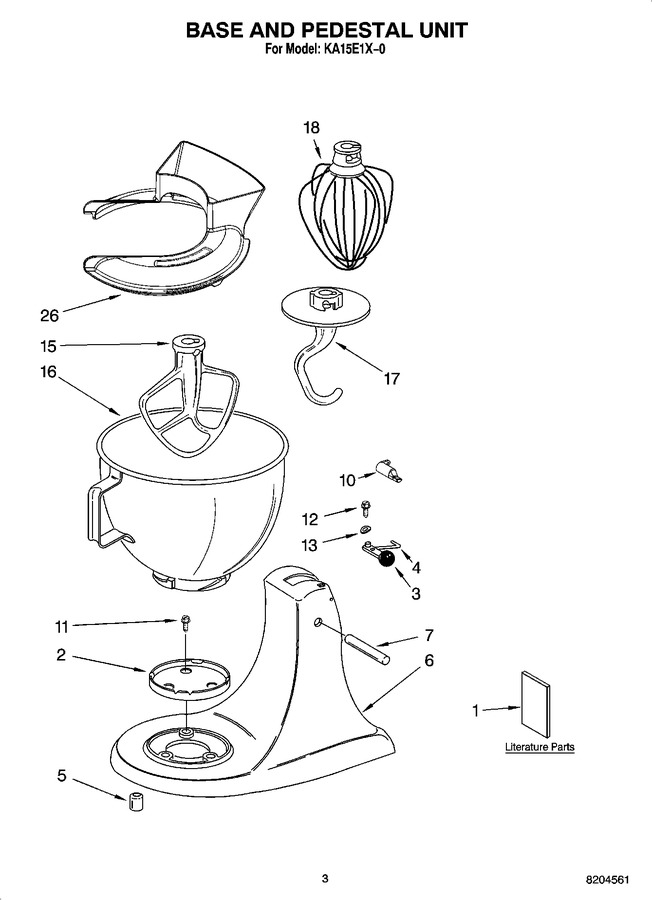

02 - Base And Pedestal Unit
03 - Case, Gearing, And Planetary Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9703467 | Use And Care Guide |
|
- | |||||
| 1 | LIT8204556 | Repair Parts List |
|
- | |||||
| 2 | 9703554 | Screw Cap |
|
- | |||||
| 3 | 9706185 | Lever, Latch |
|
$ 20.86 | |||||
| 4 | 9706803 | Link, Latch |
|
$ 21.96 | |||||
| 5 | WP9709707 | Foot, Base (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 7 | 9703583 | Pin, Hinge |
|
- | |||||
| 10 | 9706802 | Cam, Latch |
|
- | |||||
| 11 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 12 | 6011-006971 | Screw, Pivot (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 15 | WPW10672617 | Beater, Flat (Replaces: 9707669) |
|
Immediately | $ 24.92 | ||||
| 16 | 9707956 | Bowl And Base |
|
- | |||||
| 17 | WPW10674618 | Dough Hook (Replaces: 9707671) |
|
Immediately | $ 31.90 | ||||
| 18 | WP9704329 | Whip-wire (Replaces: 9704329) |
|
Immediately | $ 29.90 | ||||
| 26 | W11312468 | Shield, Pouring (Replaces: 9708130) |
|
$ 43.26 |
