View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Color Variation Parts
02 - Base And Pedestal Unit

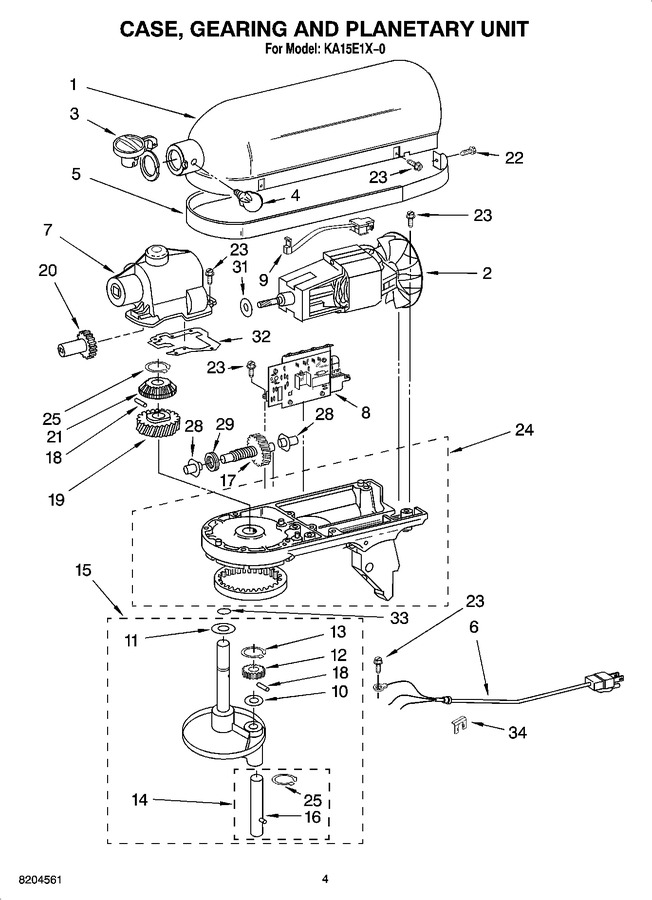

03 - Case, Gearing, And Planetary Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPW10247536 | Motor (10 Tooth) (Replaces: 9708197) |
|
Immediately | $ 125.65 | ||||
| 3 | W11123129 | Cap, Attachemnt Hub (hinged) (Replaces: 9703315) |
|
$ 19.69 | |||||
| 4 | WP9709196 | Thumb Screw (white (storm Gray)) (Replaces: 240374-2) |
|
$ 9.41 | |||||
| 6 | 9706553 | Power Cord |
|
- | |||||
| 7 | 8212396 | Transmission Housing (Replaces: 9703671) |
|
Immediately | $ 62.13 | ||||
| 8 | WP9706648 | Control Assembly (gray Knob) (Replaces: 9706649) |
|
Immediately | $ 109.97 | ||||
| 9 | WP9706648 | Sensor, Hall Effect (Replaces: 9703312) |
|
Immediately | $ 109.97 | ||||
| 10 | WP9706090 | Washer (Replaces: 9706090) |
|
$ 5.04 | |||||
| 11 | W11084660 | Washer, Fiber (Replaces: 9703434) |
|
Immediately | $ 4.94 | ||||
| 12 | W11133646 | Gear, Pinion (Replaces: 9703340) |
|
Immediately | $ 8.47 | ||||
| 13 | WP9703438 | Retaining Clip (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 14 | WP9708191 | Agitator Shaft (Replaces: 9708191) |
|
Immediately | $ 17.84 | ||||
| 16 | W11664709 | Pin, Groove (Replaces: 9704677) |
|
Immediately | $ 6.75 | ||||
| 17 | WP9709231 | Worm Gear (Replaces: 9706770) |
|
Immediately | $ 55.55 | ||||
| 18 | WP9707223 | Retaining Pin (Replaces: 9707223) |
|
Immediately | $ 5.08 | ||||
| 19 | W11086780 | Gear, Worm Follower (Replaces: 9706529) |
|
Immediately | $ 19.02 | ||||
| 20 | W11192795 | Gear, Attachment Hub Bevel (Replaces: 9703338) |
|
Immediately | $ 23.38 | ||||
| 21 | W11192795 | Gear, Bevel (Replaces: 9703337) |
|
Immediately | $ 23.38 | ||||
| 22 | WP3196170 | Screw, 6-32 X 1/4 (Replaces: 3400617) |
|
$ 7.55 | |||||
| 23 | WP3400814 | Screw, 8-32 X 5/8 (Replaces: 3400814) |
|
$ 4.62 | |||||
| 25 | WP9703680 | Retaining Clip (Replaces: 9703680) |
|
Immediately | $ 4.99 | ||||
| 28 | WPW10170080 | Bearing (front) (Replaces: 9703560) |
|
Immediately | $ 5.14 | ||||
| 28 | WPW10170081 | Bearing (rear) (Replaces: 9703570) |
|
Immediately | $ 5.14 | ||||
| 29 | WP9703445 | Thrust Bearing (Replaces: 9703445) |
|
Immediately | $ 9.26 | ||||
| 31 | WP9706247 | Seal, Motor Shaft (Replaces: 9706247) |
|
Immediately | $ 4.84 | ||||
| 32 | 8212396 | Gasket, Transmission (Replaces: 9707425) |
|
Immediately | $ 62.13 | ||||
| 33 | WP67500-55 | O-ring (Replaces: 67500-55) |
|
Immediately | $ 4.52 | ||||
| 34 | 9703333 | Clip, Cord Retainer |
|
- | |||||
| 4164839 | Speed Disc (service Tool) |
|
- | ||||||
| W10802058 | Bowl, Satin Stainless (Replaces: 4162160) |
|
$ 103.12 | ||||||
| 4164749 | Food Grinder (fg-a) |
|
- | ||||||
| 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs |
|
- | ||||||
| W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | |||||
| 3180617 | Cover, Decorative (cotton Polyester) |
|
- | ||||||
| 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | ||||||
| 4164824 | Pasta Maker Plates Snpa |
|
- | ||||||
| W11312468 | Sheld-pour (Replaces: 9704568) |
|
$ 43.26 | ||||||
| RVSA | Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin (Replaces: 4164750) |
|
$ 115.50 | ||||||
| FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 | ||||||
| 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | ||||||
| 3180262 | Bowl, 3 Qt. |
|
$ 68.75 | ||||||
| W10802058 | Bowl, Stainless With Handle (Replaces: 4163337) |
|
$ 103.12 | ||||||
| 3177924 | Bowl Cover, Plastic Non-sealing |
|
- | ||||||
| 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | ||||||
| 4164747 | Can Opener, Co |
|
- | ||||||
| 4164748 | Juicer, Je |
|
- | ||||||
| 4162838 | Food Tray (ft) |
|
- | ||||||
| 4164751 | Grain Mill (gm-a) |
|
- |
