SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts

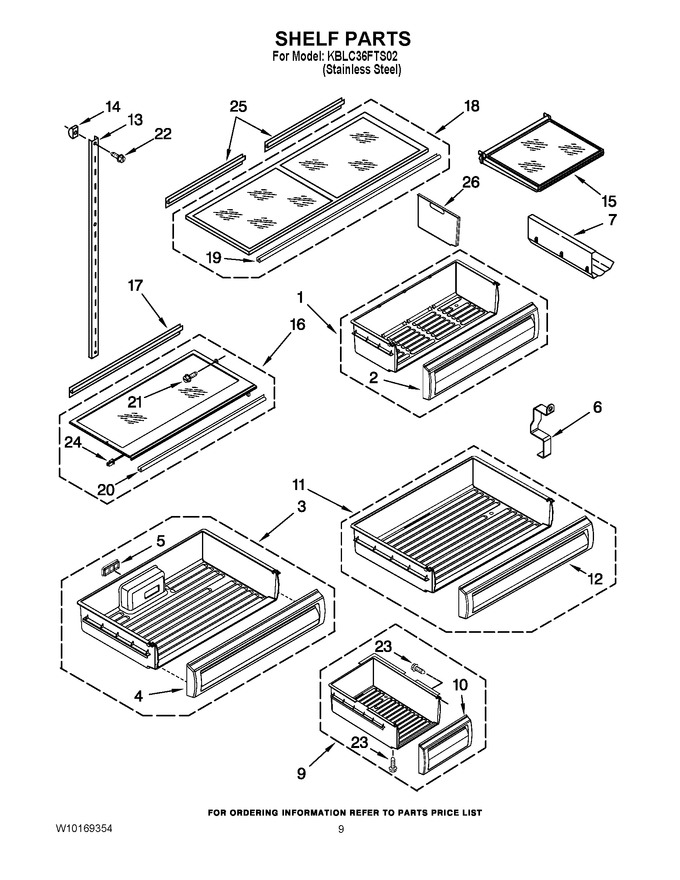

06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256375		Crisper Pan Assembly (includes No. 2)   (Replaces: 2256375)				$ 378.33
2	2256374		Front, Crisper Pan		Appelez-nous	-
3	2268397		Deli Pan Assembly (incl. No.4 & 5)		Appelez-nous	-
4	2257548		Front, Deli Pan				$ 157.61
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2327394		Clip, Bin (left)		Appelez-nous	-
6	2327393		Clip, Bin (right)				$ 61.29
7	W10777924		Rack, Wine   (Replaces: 2179404)				$ 23.60
9	2306174		Ice Pan Assembly (includes No. 10)				$ 147.41
10	2306175		Front, Ice Pan				$ 91.39
11	2327512		Freezer Pan Assembly (includes No. 12)		Appelez-nous	-
12	2268383		Front, Freezer Pan		Appelez-nous	-
13	2327314		Ladder, Shelf (4)		Appelez-nous	-
14	520965		Support, Ladder				$ 29.86
15	2309376		Shelf (4)		Appelez-nous	-
16	2308605		Cover, Deli Bin		Appelez-nous	-
16	2327413		Insulation, Deli		Appelez-nous	-
17	2309399		Gasket, Rear		Appelez-nous	-
18	2268413		Cover, Crisper		Appelez-nous	-
19	2309397		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309397		Gasket, Front (deli Cover)		Appelez-nous	-
21	W10825422		Screw   (Replaces: 8281251)				$ 10.82
22	2006475		Screw,		Appelez-nous	-
23	WP488787		Screw 8-18 X 1/2   (Replaces: 488886)				$ 10.58
24	2309393		Light Assy, (deli)		Appelez-nous	-
25	2309398		Gasket, Rear		Appelez-nous	-
26	2256474		Divider, Crisper Pan				$ 87.99

    View Diagram in Separate Window       Print Part List
