01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts

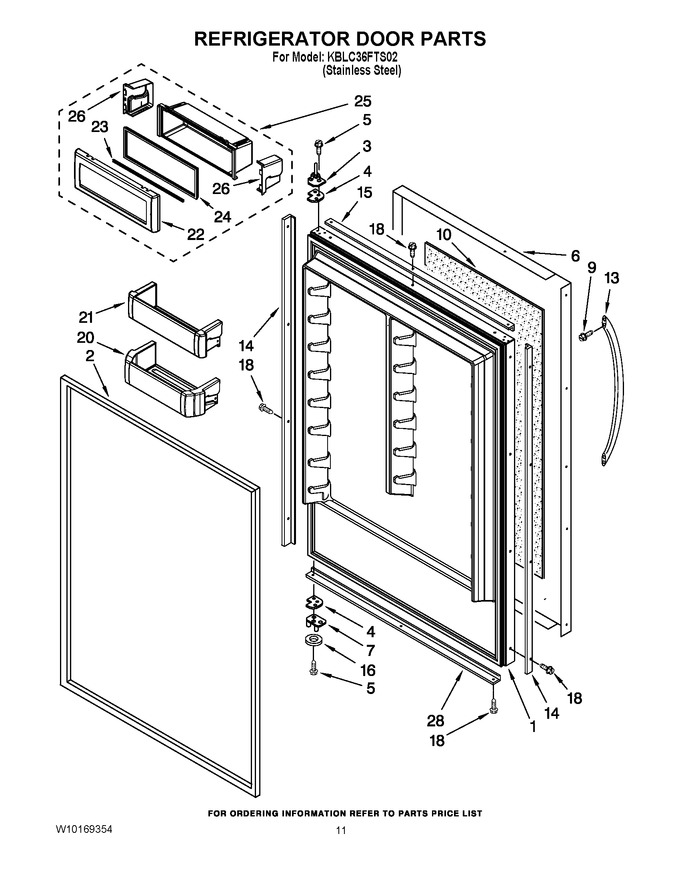

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309390		Door, Refrigerator (includes Item 2)		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 312.67
3	2266912		Hinge Assembly, Top				$ 44.22
4	W11673500		Spacer-hinge   (Replaces: 2316804)			Immediately	$ 108.07
5	WP8533980		Screw, 10-32 X 3/4   (Replaces: 8533980)			Immediately	$ 82.51
6	2306488		Skin, Door		Appelez-nous	-
7	2316807		Bottom Hinge Assembly				$ 206.00
9	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
10	2327469		Filler, Foam		Appelez-nous	-
13	WP2316868		Handle   (Replaces: 2316868)			Immediately	$ 268.03
14	2300026		Spacer, Door Edge (hinge Side)		Appelez-nous	-
15	2300024		Spacer, Door Edge - Top		Appelez-nous	-
16	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
18	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 10.88
20	W10323749		Shelf, Door (gallon)   (Replaces: 2307975)				$ 130.32
21	W11590561		Shelf, Door (4)   (Replaces: 2222777)				$ 89.74
22	2309255		Door, Utility Bin				$ 43.26
23	2309256		Rail, Lid		Appelez-nous	-
24	2309257		Gasket, Utility Bin		Appelez-nous	-
25	W10323044		Bin, Utility   (Replaces: 2309252)				$ 126.27
26	WPW10323173		End Cap, Utility Bin (left Side)   (Replaces: 2222920)				$ 8.19
26	WPW10323172		End Cap, Utility Bin (right Side)   (Replaces: 2222919)				$ 8.19
28	2300023		Spacer, Door Edge - Bottom		Appelez-nous	-
