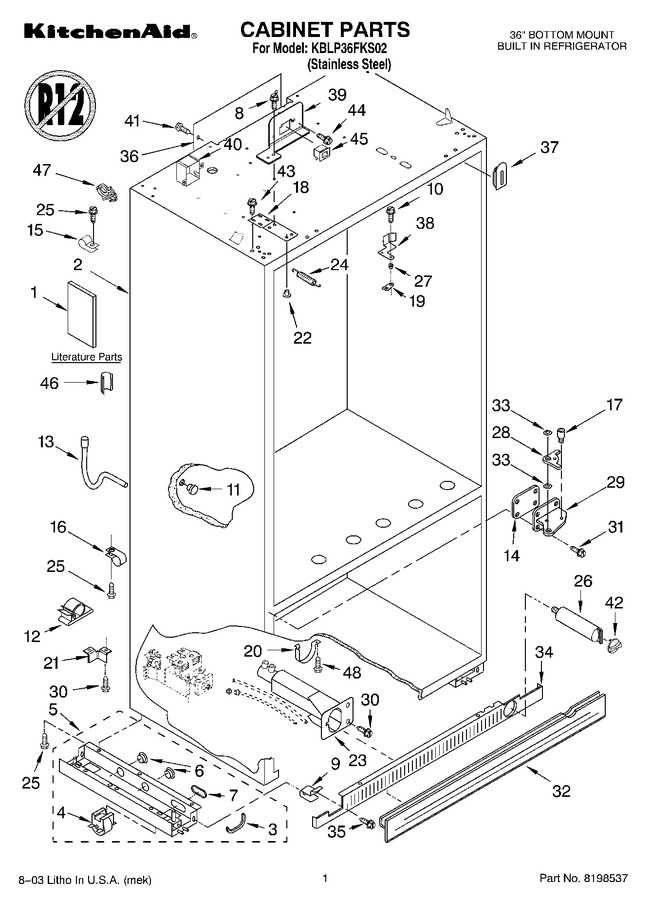

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2266877 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT2257388 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2259219 | Literature Parts (energy Label) |
|
- | |||||
| 1 | LIT2254723 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 2005004 | Grommet, Tube Crossover |
|
- | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: 1112023) |
|
$ 45.34 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: 2004506) |
|
Immediately | $ 383.00 | ||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: 2004505) |
|
$ 381.83 | |||||
| 6 | 2005006 | Grommet, Wiring |
|
- | |||||
| 7 | 2005007 | Grommet, Flexible |
|
- | |||||
| 8 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 9 | 2006442 | Mounting Bracket, Grill |
|
- | |||||
| 10 | 2005921 | Screw |
|
$ 7.65 | |||||
| 11 | 1112849 | Cap, Grommet |
|
- | |||||
| 12 | 2004514 | Clamp, Tube |
|
- | |||||
| 13 | 2204516 | Tube, Drain Condensate |
|
- | |||||
| 14 | 2207470 | Shim-hinge, Door |
|
Immediately | $ 52.27 | ||||
| 15 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 16 | 488946 | Tube, Clamp |
|
$ 21.47 | |||||
| 17 | 2001295 | Screw, Door Stop |
|
$ 42.18 | |||||
| 18 | 2257644 | Hinge, Door Refrigerator Top |
|
$ 177.98 | |||||
| 19 | 2005783 | Cam-closer, Door |
|
$ 26.20 | |||||
| 20 | 2209090 | Clamp, Filter Housing |
|
- | |||||
| 21 | 2006617 | Bracket, Support Door |
|
- | |||||
| 22 | 2002903 | Bushing |
|
$ 34.41 | |||||
| 23 | WP2209022 | Housing, Water Filter (Replaces: 2209022) |
|
Immediately | $ 246.56 | ||||
| 24 | WP2004517 | Spring, Door Closure (Replaces: 2004517) |
|
Immediately | $ 95.43 | ||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 26 | EDR5RXD1B | Filter, Water (Replaces: 2203221) |
|
Immediately | $ 49.99 | ||||
| 27 | WP2316859 | Bushing-arm, Extension (Replaces: 2006960) |
|
Immediately | $ 54.20 | ||||
| 28 | W10188434 | Gap, Cover (bottom) (Replaces: 2006388) |
|
$ 67.95 | |||||
| 29 | 2005101 | Hinge, Bottom Refrigerator |
|
$ 100.93 | |||||
| 30 | WP489464 | Screw 8-18 X 1/2 (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 31 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 32 | WP2209024B | Skirt-grille, Bottom (Replaces: 2209024B) |
|
$ 169.87 | |||||
| 33 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 34 | 2215889B | Grille Base, Front |
|
- | |||||
| 35 | W10851443 | Screw (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 36 | 2209133 | Cover, Rear |
|
- | |||||
| 37 | 1113122 | Grommet, Wiring |
|
- | |||||
| 38 | WPW10121046 | Arm, Extension (Replaces: 2221094) |
|
Immediately | $ 83.71 | ||||
| 39 | 2221096 | Bracket, Switch |
|
$ 97.86 | |||||
| 40 | 2215938 | Cover, Switch |
|
$ 94.78 | |||||
| 41 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 7.55 | |||||
| 42 | WP2186494B | Cap Water Filter (Replaces: 2186494B) |
|
Immediately | $ 55.86 | ||||
| 43 | W11721628 | Screw (4) (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 44 | WP965173 | Screw,8-18 X 3/8 (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 45 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 46 | 9791833 | Clip |
|
- | |||||
| 47 | 2207578 | Clip, Snap-in (2) |
|
- | |||||
| 48 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 |
