SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts


08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts

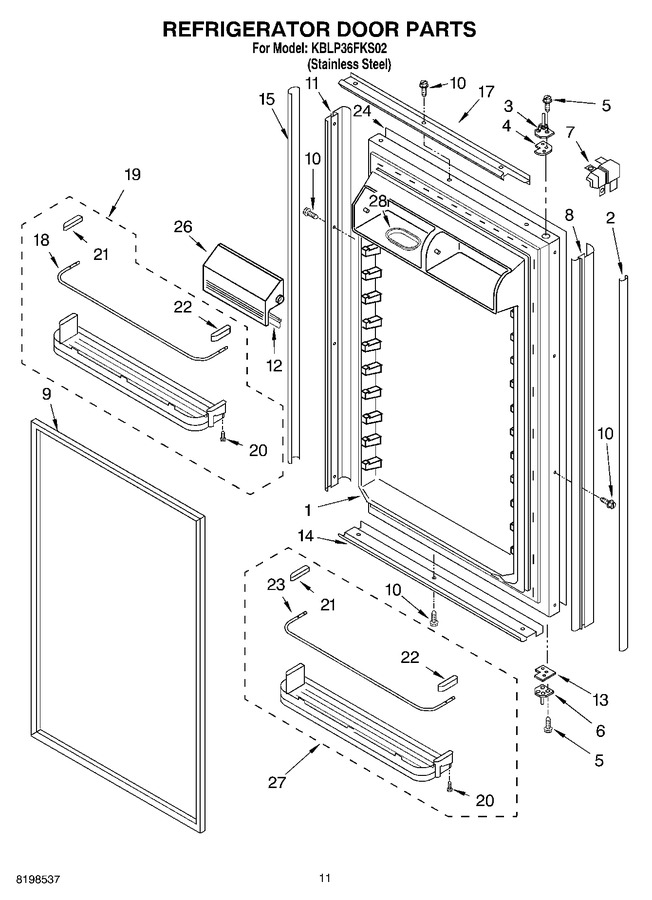

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259186		Refrigerator Door (includes Item 9)		Appelez-nous	-
2	2006339		Cover-trim, Handle		Appelez-nous	-
3	2266912		Hinge Assembly, Top				$ 44.22
4	2256381		Spacer-hinge, Top				$ 24.49
5	W11474472		Screw, 10-32 X 3/4   (Replaces: 489282)			Immediately	$ 8.02
6	2257607		Hinge Assembly, Bottom		Appelez-nous	-
7	2207457		Corner Trim				$ 54.40
8	2005861		Trim-door, Side		Appelez-nous	-
9	2188532		Door Gasket, Magnetic		Appelez-nous	-
10	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 10.88
11	2005855		Handle, Door		Appelez-nous	-
12	2005982		Gasket (2)		Appelez-nous	-
13	2257647		Spacer-hinge, Bottom		Appelez-nous	-
14	2005864		Trim-door, Bottom		Appelez-nous	-
15	2006334		Cover-trim, Side		Appelez-nous	-
17	2005867		Trim-door, Top		Appelez-nous	-
18	2005482		Tube, Door Shelf		Appelez-nous	-
19	2005417		Shelf, Door (2)		Appelez-nous	-
20	WP681249		Screw, 8-18 X 3/4   (Replaces: 489276)			Immediately	$ 7.86
21	2005542		End Cap, Left		Appelez-nous	-
22	2005541		End Cap, Right		Appelez-nous	-
23	2006152		Tube, Door Shelf (gallon)		Appelez-nous	-
24	2209369		Panel, Insert		Appelez-nous	-
26	2005983		Door, Utility Bin (2) (includes Item 12)		Appelez-nous	-
27	2006154		Door Shelf, Gallon		Appelez-nous	-
28	2165792		Butter Tray		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
