Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2215919S Cabinet, Trim (right Side) Appelez-nous -
3 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.19

4 2254724 Cabinet, Trim (bottom) Appelez-nous -
5 W11624204 Screw   (Replaces: 486194) Special Order $ 14.02

6 2003645 Cabinet, Trim Top Appelez-nous -
8 2005782 Cover, Hinge Special Order $ 12.04

9 2005925 Seal, Side Trim Special Order $ 83.72

10 2215936S Cabinet Trim (left Side) Appelez-nous -
11 WP489464 Screw 8-18 X 1/2   (Replaces: 489464) In-Stock Immediately $ 7.83

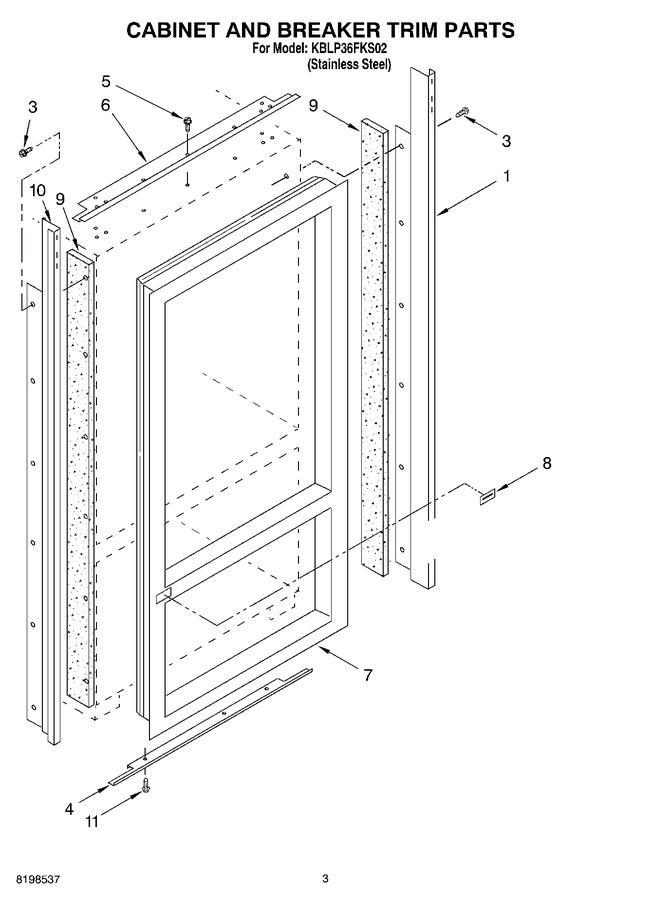

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KBLP36FKS02
