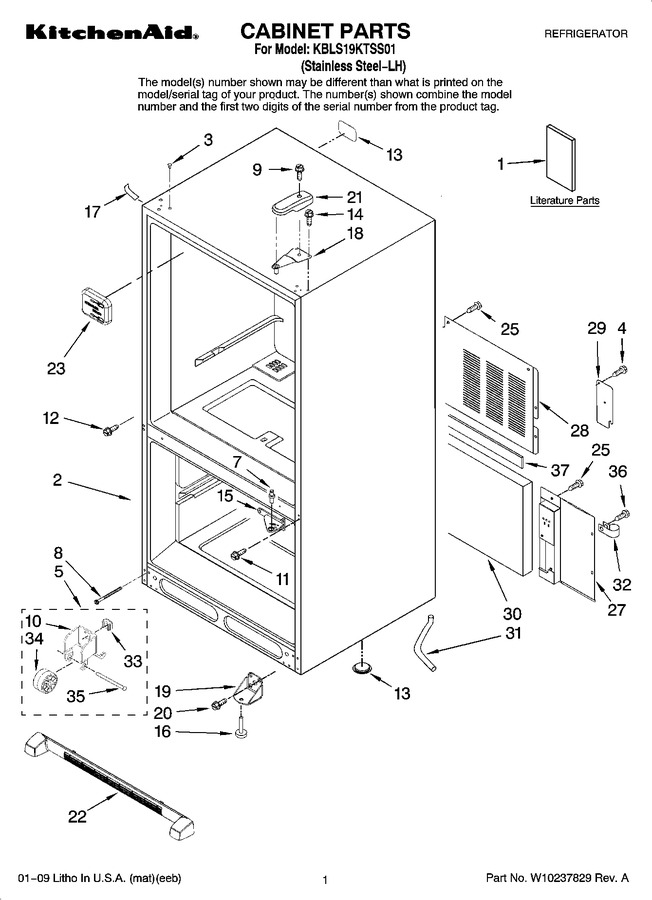

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10183307 | Energy Guide |
|
- | |||||
| 1 | W10165418 | Tech Sheet |
|
- | |||||
| 1 | W10137649 | Use & Care Guide |
|
- | |||||
| 3 | WP12246608 | Plug, Button (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 4 | WP489128 | Screw (Replaces: 67006662) |
|
$ 11.40 | |||||
| 5 | 12580304 | Roller Foot Assembly |
|
$ 5.84 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 8.78 | |||||
| 8 | 71003131 | Bolt, Adjusting (rear) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 12456801V | Bracket, Roller (Replaces: 12456801) |
|
$ 53.10 | |||||
| 11 | W11573362 | Screw (Replaces: 67006380) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 13 | W11685757 | Label, Fill Tube (Replaces: 67005064) |
|
$ 7.41 | |||||
| 14 | WP489349 | Screw (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | W11177593 | Foot Brake (2) (Replaces: 67003868) |
|
$ 12.18 | |||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 19 | 12906303WD | Bracket, Foot |
|
$ 88.58 | |||||
| 20 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 21 | 67001012 | Cover, Hinge |
|
$ 49.71 | |||||
| 22 | WPW10534167 | Grille Assembly (includes Clips) (black) (Replaces: 12880101B) |
|
$ 91.42 | |||||
| 23 | WP67001098 | Cover, Fill Tube (Replaces: 67001098) |
|
$ 8.43 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 27 | 67001173 | Cover, Water Valve |
|
- | |||||
| 28 | 12575101WD | Cover, Unit |
|
$ 73.26 | |||||
| 29 | 12479901 | Plate, Cover |
|
- | |||||
| 30 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 31 | W10164397 | Tube, Drain |
|
$ 15.53 | |||||
| 32 | W10157973 | Clip, Drain Tube |
|
$ 7.80 | |||||
| 33 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 34 | WP10450603 | Roller (Replaces: 67005127) |
|
$ 8.27 | |||||
| 35 | M1205302 | Pin |
|
$ 5.85 | |||||
| 36 | WP33001882 | Screw (Replaces: 67006737) |
|
$ 83.71 | |||||
| 37 | B5759649 | Gasket |
|
- |
