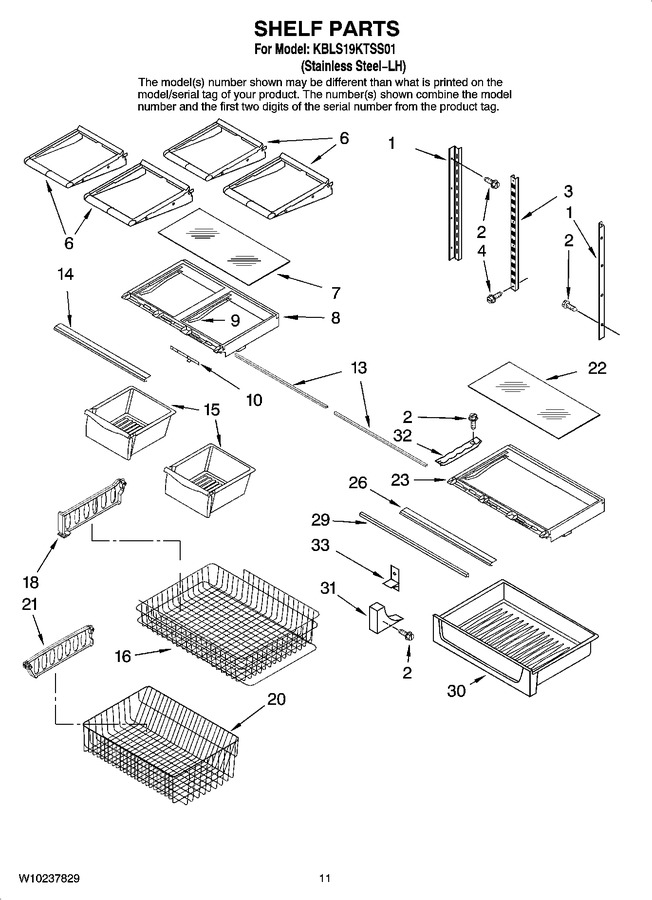

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001302 | Ladder, Side |
|
- | |||||
| 2 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 3 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 4 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 6 | 67001151 | Shelf, Glide (4) |
|
$ 89.93 | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 67006877) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 67001153) |
|
Immediately | $ 138.10 | ||||
| 9 | WPW10671238 | Support, Center Crisper Drawer (Replaces: 67001057) |
|
Immediately | $ 118.46 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 13 | WP12227302WD | Support, Crisper Frame (Replaces: 67001155) |
|
$ 111.60 | |||||
| 14 | W10656984 | Trim, Crisper (Replaces: 12530647) |
|
$ 84.70 | |||||
| 15 | W10833530 | Pan, Crisper (2) (Replaces: 67006827) |
|
$ 158.61 | |||||
| 16 | 67004985 | Basket, Freezer (upper) |
|
$ 99.88 | |||||
| 18 | 67004127 | Divider, Upper Basket |
|
$ 10.10 | |||||
| 20 | W10503182 | Basket, Freezer (lower) (Replaces: W10143560) |
|
$ 241.97 | |||||
| 21 | 67006644 | Divider, Lower Basket |
|
- | |||||
| 22 | WP67006877 | Glass, Pantry (Replaces: 67006877) |
|
Immediately | $ 209.75 | ||||
| 23 | WPW10671240 | Frame, Pantry (Replaces: 67001153) |
|
Immediately | $ 138.10 | ||||
| 26 | WPW10231481 | Trim, Pantry (Replaces: 67003927) |
|
$ 117.42 | |||||
| 29 | WP12227302WD | Support, Rear (Replaces: 67001155) |
|
$ 111.60 | |||||
| 30 | W10328331 | Drawer, Pantry (Replaces: 67007044) |
|
Immediately | $ 158.69 | ||||
| 31 | WP67001721 | Support, Pantry (left) (Replaces: 67001721) |
|
Immediately | $ 8.70 | ||||
| 31 | WP67001722 | Support, Pantry (right) (Replaces: 67001722) |
|
Immediately | $ 8.93 | ||||
| 32 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 33 | WP67001716 | Hook, Ladder (2) (Replaces: 67001716) |
|
Immediately | $ 11.14 |
