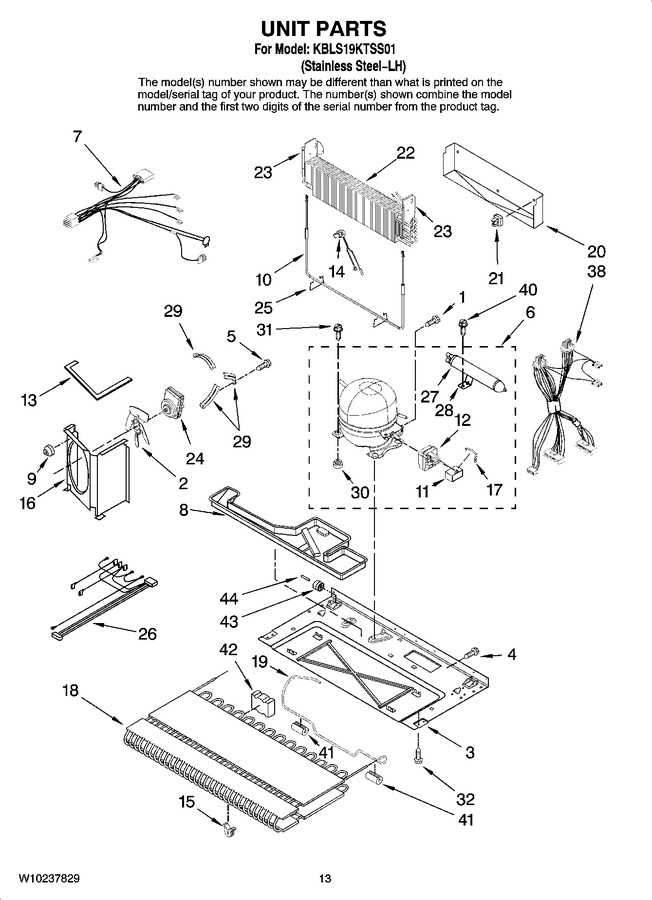

07 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan			Immediately	$ 62.11
3	12601104		Basepan		Appelez-nous	-
4	67006425		Screw			Immediately	$ 7.30
5	WP67004954		Screw   (Replaces: 67004954)				$ 8.18
6	W10130129		Compressor		Appelez-nous	-
7	W10119856		Harness, Evap. Heater				$ 105.98
8	12477402		Drain Pan				$ 77.11
9	61004743		Grommet (3)				$ 5.51
10	WP67002135		Heater, Defrost   (Replaces: 67002135)			Immediately	$ 160.16
11	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
12	WPW10197426		Overload/relay   (Replaces: W10136414)				$ 162.06
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.94
14	WPW10165425		Thermostat, Defrost   (Replaces: W10165425)			Immediately	$ 74.57
15	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.76
16	12575309		Shroud, Condenser				$ 185.38
17	W10131991		Clip, Capacitor		Appelez-nous	-
18	W10346423		Condenser   (Replaces: W10135028)				$ 239.30
19	W10183705		Tube, Discharge		Appelez-nous	-
20	W11337775		Tray, Drip   (Replaces: 67001133)			Immediately	$ 99.07
21	10623002		Clip, Evaporator				$ 12.11
22	67003718		Evaporator		Appelez-nous	-
23	67001084		Dam (right Side)		Appelez-nous	-
23	67001083		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	13060302		Harness, Unit With Power Cord				$ 324.94
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Condenser   (Replaces: 67004953)				$ 72.27
30	WPW10169124		Grommet   (Replaces: W10169124)				$ 7.55
31	12846902		Screw (3)   (Replaces: 67006432)				$ 13.64
32	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
40	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
41	67005680		Grommet (2)				$ 22.10
42	67005491		Block, Condenser		Appelez-nous	-
43	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 23.12
44	67006434		Axle, Roller (2)			Immediately	$ 7.90
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	978028		Valve, Access (1/2)		Appelez-nous	-
	978029		Valve Access (5/8``)				$ 93.85
	978030		Valve, Access (3/4``)				$ 137.25
	876764		Valve, Access(3/16``)			Immediately	$ 95.92
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 59.89
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	2217192		Cleaner, (stainless Steel)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (black) (uncut)				$ 237.46
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
	978026		Valve, Access (5/16``)			Immediately	$ 134.49
