SELECT A DIAGRAM

02 - Refrigerator Door


03 - Freezer Door

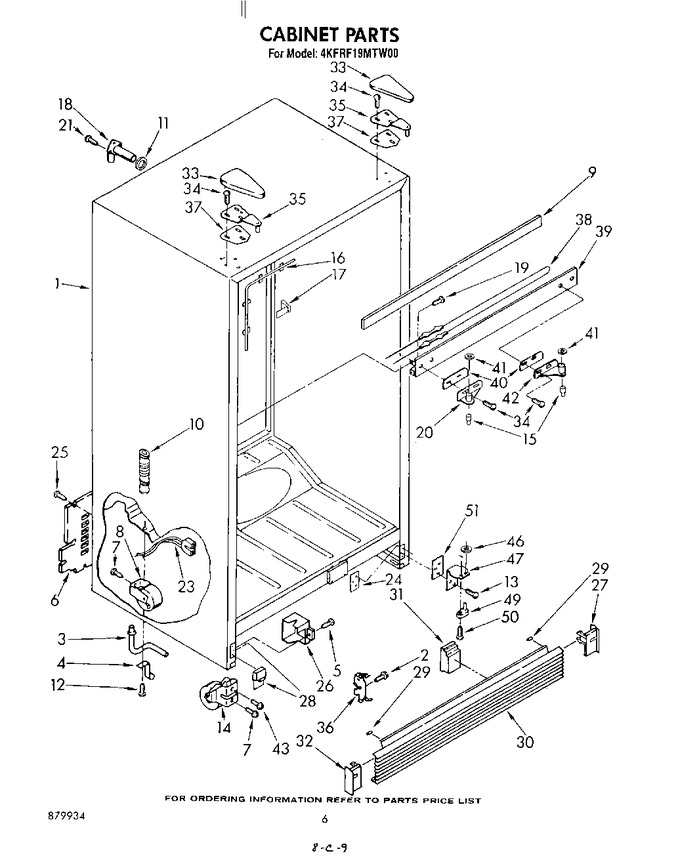

04 - Cabinet


05 - Liner


06 - Interior


07 - Breaker And Control


08 - Unit


09 - Ice Maker , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
3	841646		Extension, Drain Fitting		Appelez-nous	-
4	841648		Clip, Drain Extension		Appelez-nous	-
5	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.79
6	850459		Cover, Unit Compartment		Appelez-nous	-
7	488454		Screw, 1/4-28 X 1/2 (4)		Appelez-nous	-
8	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
9	987506		Seal, Strip Center Rail		Appelez-nous	-
10	839861		Drain Fitting Liner		Appelez-nous	-
11	WP1106508		Seal, Gasket   (Replaces: 1103059)			Immediately	$ 9.93
12	489050		Screw, 8-32 X 1/2				$ 692.56
13	488949		Screw (repair)		Appelez-nous	-
13	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
14	981127		Roller, Front (2)		Appelez-nous	-
15	992547		Pin, Hinge		Appelez-nous	-
16	1114265		Heater, Stile		Appelez-nous	-
17	935663		Clip, Heater (2)		Appelez-nous	-
18	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.99
19	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
19	487470		Screw (repair) (4)		Appelez-nous	-
20	992542		Hinge, Center (l.h.)		Appelez-nous	-
21	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.00
23	548734		Wire Assembly (water Valve)		Appelez-nous	-
24	836162		Tap Plate, Hinge		Appelez-nous	-
25	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
26	549947		Box, Junction		Appelez-nous	-
27	1107443		Grille, End Cap (r.s)		Appelez-nous	-
28	839178		Filler, Corner		Appelez-nous	-
29	1107614		Bumper, Grille (2)		Appelez-nous	-
30	1107194		Grille		Appelez-nous	-
31	1107271		Insert, Air Baffle Grille		Appelez-nous	-
32	1107444		Grille, End Cap (l.s.)		Appelez-nous	-
33	989194		Cover, Hinge (2) (almond)		Appelez-nous	-
33	1100172		Hinge Cover (toast)		Appelez-nous	-
33	1100173		Cover, Hinge (2) (platinum)		Appelez-nous	-
33	842010		Cover, Hinge (2) (white)		Appelez-nous	-
34	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.86
34	488949		Screw (repair)		Appelez-nous	-
35	842035		Hinge, Top (2)		Appelez-nous	-
36	989068		Clip, Grille (2)		Appelez-nous	-
37	836151		Shim, Top Hinge (.030)		Appelez-nous	-
38	989256		Heater, Mullion		Appelez-nous	-
39	836067		Center Rail & Bracket Assembly (white)		Appelez-nous	-
39	989911		Center Rail & Bracket Assembly (almond)		Appelez-nous	-
39	1100303		Center Rail (toast)		Appelez-nous	-
39	1100304		Center Rail (platinum)		Appelez-nous	-
40	836155		Shim, Center Hinge		Appelez-nous	-
41	WP488296		Washer, 11/64 (2)   (Replaces: 488296)				$ 7.19
42	992544		Hinge, Center (r.h.)		Appelez-nous	-
43	488681		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
46	489200		Washer				$ 7.75
47	1115908		Hinge Butt, Bottom		Appelez-nous	-
49	654366		Pin, Hinge				$ 27.15
50	489218		Screw		Appelez-nous	-
51	836196		Shim, Bottom Hinge (.030)		Appelez-nous	-
