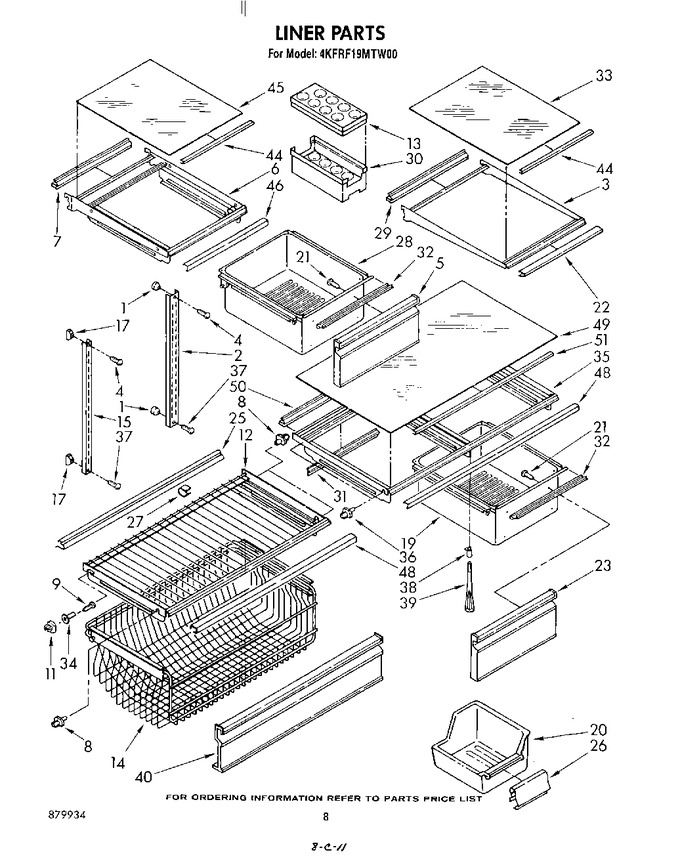

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520959		Support, Center Ladder (2)		Appelez-nous	-
2	1107301		Ladder (center)		Appelez-nous	-
3	1107060		Shelf, Cantilever (3)		Appelez-nous	-
4	488623		Screw, (repair) 10 X 1 1/4		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
5	1107179		Front Cover, Meat Pan		Appelez-nous	-
6	1107080		Meat Pan, Shelf		Appelez-nous	-
7	1107545		Reflector, Glass Shelf		Appelez-nous	-
8	528864		Stud, Shelf (3)		Appelez-nous	-
9	487547		Screw, 8-15 X 1		Appelez-nous	-
11	538449		Grommet, Screw		Appelez-nous	-
12	1107097		Shelf, Freezer		Appelez-nous	-
13	1107388		Egg Container, Top		Appelez-nous	-
14	1107125		Basket, Freezer		Appelez-nous	-
15	1107112		Ladder, Shelf (side) (2)		Appelez-nous	-
17	520965		Support, Side Ladders (4)				$ 29.86
19	1107873		Pan Crisper (2)		Appelez-nous	-
20	653503		Ice Cube Pan		Appelez-nous	-
21	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.79
21	488132		Screw (repair)		Appelez-nous	-
22	1107072		Trim, Shelf Front		Appelez-nous	-
23	1107155		Front Cover, Crisper (2)		Appelez-nous	-
25	1107257		Reflector, Wire Shelf		Appelez-nous	-
26	539567		Trim, Ice Pan		Appelez-nous	-
27	1107246		Clip, Reflector		Appelez-nous	-
28	1107874		Pan, Meat		Appelez-nous	-
29	1107068		Reflector, Cantilever Shelf		Appelez-nous	-
30	1107384		Egg Container, Bottom		Appelez-nous	-
31	1107480		Crisper Gasket, Rear		Appelez-nous	-
32	1107304		Crisper Gasket, Front		Appelez-nous	-
33	1107064		Glass, Cantilever Shelf (3)		Appelez-nous	-
34	1117317		Stud, Shelf		Appelez-nous	-
35	1107293		Cover, Crisper Frame		Appelez-nous	-
36	1107968		Stud, Shelf (4)		Appelez-nous	-
37	488960		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
37	488980		Screw (repair)		Appelez-nous	-
38	1107730		Support, Cover		Appelez-nous	-
39	937340		Post, Support Cover		Appelez-nous	-
40	1107343		Front, Basket		Appelez-nous	-
44	1107265		Shelf Gasket, Glass		Appelez-nous	-
45	1107088		Glass, Meat Pan		Appelez-nous	-
46	1107136		Trim, Frame		Appelez-nous	-
48	1107294		Trim, Frame		Appelez-nous	-
49	1107353		Glass, Crisper Cover		Appelez-nous	-
50	1107248		Reflector, Glass Shelf		Appelez-nous	-
51	1107580		Shelf Gasket, Glass		Appelez-nous	-
