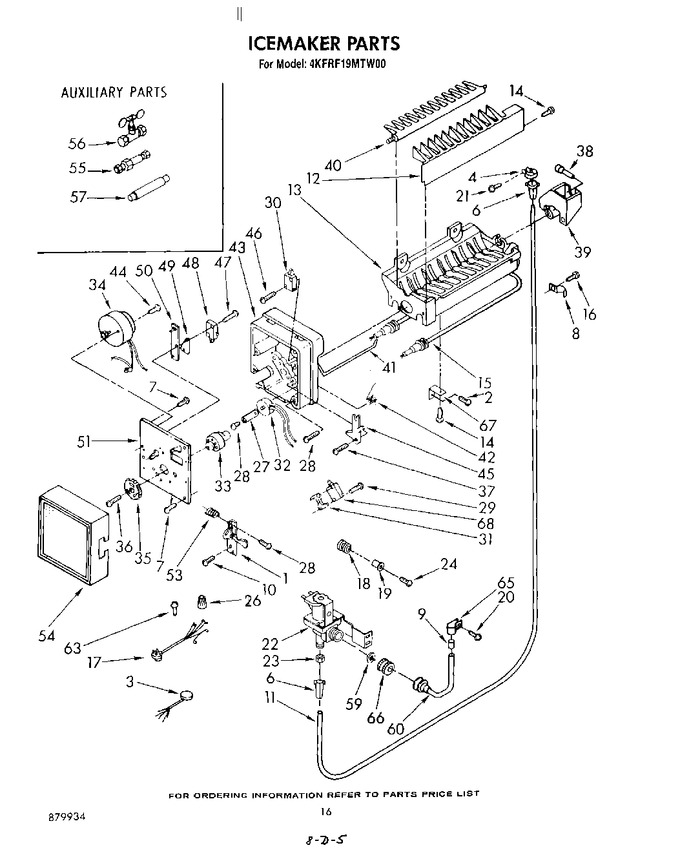

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	627248		Lever & Plate Assembly		Appelez-nous	-
2	487562		Screw, 10-12 X 3/8		Appelez-nous	-
3	481658		Ice Maker Cabinet Harness (6 In. Lead)		Appelez-nous	-
4	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
6	4387491		Insert, Tube (2)   (Replaces: 841707)				$ 7.84
7	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 488886)				$ 10.58
8	836472		Clamp, Tube		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
10	488622		Screw, 4-40 X 1/4		Appelez-nous	-
11	W10823511		Tube, Water   (Replaces: 1108348)			Immediately	$ 32.41
12	625840		Stripper, Ice		Appelez-nous	-
13	625856		Mold & Heater Assembly (includes Illus. 15)		Appelez-nous	-
14	00489128		Screw, 8-16 X 3/8   (Replaces: 489128)				$ 859.97
15	625843		Heater, Mold		Appelez-nous	-
16	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
17	627478		Harness, Wiring		Appelez-nous	-
18	510723		Grommet		Appelez-nous	-
19	510906		Eyelet, Spacer		Appelez-nous	-
20	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
21	WP965173		Screw 8 X 1/2   (Replaces: 487415)			Immediately	$ 10.72
22	4318047		Valve Solenoid   (Replaces: 627910)			Immediately	$ 74.09
23	WP627018		Nut, Compression (1/4`` Diameter)   (Replaces: 627018)				$ 10.97
24	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
26	227991		Connector Wire		Appelez-nous	-
27	625829		Clamp, Thermostat		Appelez-nous	-
28	488372		Screw, 8-32 X 1		Appelez-nous	-
29	488361		Screw, 4-40 X 1 (2)		Appelez-nous	-
30	625851		Switch, S.p.d.t.		Appelez-nous	-
31	625834		Spacer, Holding Switch				$ 7.99
32	627331		Thermostat		Appelez-nous	-
33	625913		Cam		Appelez-nous	-
34	625846		Motor		Appelez-nous	-
35	628210		Gear		Appelez-nous	-
36	488957		Screw		Appelez-nous	-
37	627199		Screw, Shoulder		Appelez-nous	-
38	836491		Tube, Water Inlet		Appelez-nous	-
39	625707		Bearing & Inlet		Appelez-nous	-
40	00627375		Ejector   (Replaces: 627375)			Immediately	$ 203.33
41	627003		Arm, Shut-off		Appelez-nous	-
42	625832		Spring, Shut-off Arm		Appelez-nous	-
43	625827		Support		Appelez-nous	-
44	488361		Screw (use W/motor 625846)		Appelez-nous	-
45	625830		Lever, Arm		Appelez-nous	-
46	488360		Screw, 4-24 X 3/4 (2)		Appelez-nous	-
47	00488362		Screw, 4-40 X 3/4 (2)   (Replaces: 488362)				$ 144.58
48	625947		Switch, S.p.s.t.		Appelez-nous	-
49	627680		Insulator, Switch		Appelez-nous	-
50	627024		Plate, Valve Switch		Appelez-nous	-
51	627740		Plate, Mounting		Appelez-nous	-
53	627163		Spring		Appelez-nous	-
54	1107613		Cover		Appelez-nous	-
55	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
56	541157		Valve, Shut-off		Appelez-nous	-
57	978488		Filter Kit		Appelez-nous	-
59	WP16123		Washer   (Replaces: 488292)				$ 7.70
60	627854		Tube, Inlet Valve		Appelez-nous	-
63	WP489128		Screw, 8-32 X 3/8 (ground)   (Replaces: 488500)				$ 10.88
65	510716		Clamp Tube		Appelez-nous	-
66	537588		Nut, Valve		Appelez-nous	-
67	WP2256087		Bracket   (Replaces: 625910)				$ 93.00
68	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
68	627848		Switch		Appelez-nous	-
68	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
68	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
68	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
68	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
68	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
68	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
68	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
68	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
68	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
68	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
68	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
68	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
68	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
68	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
68	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
68	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
68	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
68	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
68	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
68	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
68	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
68	833938		Kit, Terminal Connector				$ 8.07
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT879934		Parts List		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT1117646		Service & Wiring Sheet		Appelez-nous	-
	LIT1117647		Energy Label		Appelez-nous	-
	LIT1117672		Care & Use Guide		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
