SELECT A DIAGRAM

01 - Cover Sheet

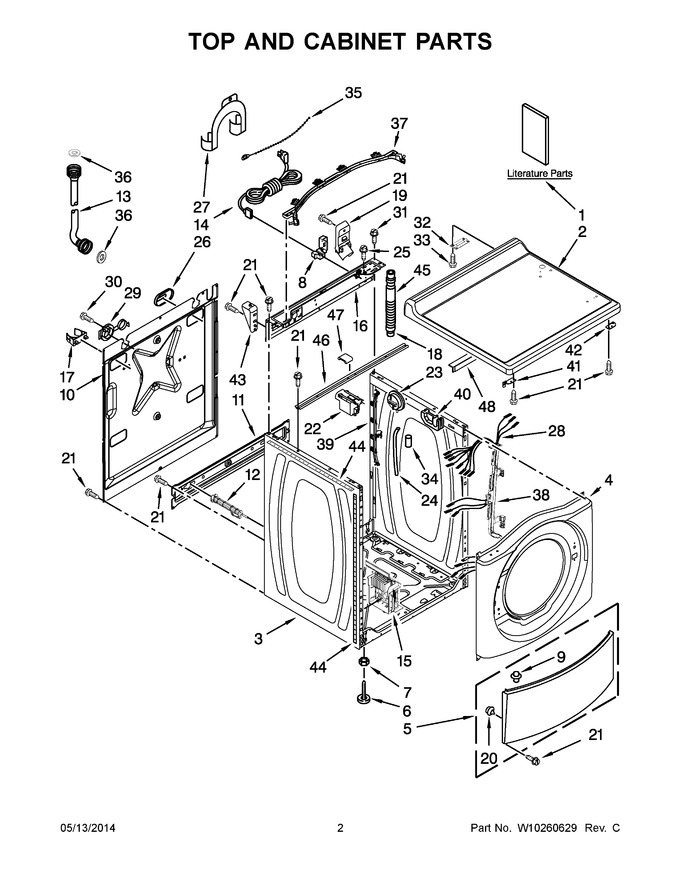

02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Meter Case Parts


06 - Dispenser Parts


07 - Tub And Basket Parts


08 - Pump And Motor Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10260359		User Instructions		Appelez-nous	-
1	W10222794		Tech Sheet (french)		Appelez-nous	-
1	W10222793		Tech Sheet (english)		Appelez-nous	-
1	W10299730		Installation Instructions		Appelez-nous	-
2	WPW10137411		Top (white)   (Replaces: W10137411)				$ 410.00
3	W10410294		Cabinet   (Replaces: W10201831)				$ 367.09
4	WPW10306505		Panel, Front (white)   (Replaces: W10306505)				$ 374.67
5	WP8540664		Panel, Toe (white)   (Replaces: 8540813)				$ 377.11
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 13.22
7	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 7.55
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
9	8518891		Rivet				$ 14.07
10	8540582		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 45.35
12	W10763471		Bolt, Shipping (set Of 4)   (Replaces: W10251449)				$ 42.13
13	WPW10352594		Hose, Water Inlet (warm Water)   (Replaces: W10276795)				$ 41.30
13	WPW10352644		Hose, Water Inlet (cold Water)   (Replaces: W10276793)				$ 33.98
14	W10476825		Cord, Power   (Replaces: W10045597)		Appelez-nous	-
15	WPW10385821		Motor Control Unit   (Replaces: W10385821)				$ 487.66
16	W10161694		Brace, Rear				$ 119.42
17	W10182936		Clamp, Tube- Transportation		Appelez-nous	-
18	WPW10114608		Hose, Drain   (Replaces: W10225577)			Immediately	$ 23.01
19	8540607		Retainer, Hose Outlet				$ 6.96
20	238614		Bumper				$ 84.79
21	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 11.49
22	W10398805		Filter, Interference   (Replaces: W10269676)		Appelez-nous	-
23	W10163980		Switch, Pressure				$ 87.59
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 9.22
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
27	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 83.51
28	W10203594		Harness, Wiring (lower Main)		Appelez-nous	-
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 23.94
30	8182201		Screw   (Replaces: 8540727)				$ 14.08
31	8540329		Screw		Appelez-nous	-
32	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 115.34
33	WP488627		Screw   (Replaces: 342055)				$ 8.11
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
35	WPW10339879		Tie, Cable (beaded)   (Replaces: 3347868)				$ 8.30
36	WP16123		Washer, Inlet Hose   (Replaces: 3976300)				$ 8.16
37	W10168548		Harness Channel, Top Rear		Appelez-nous	-
38	W10200785		Harness Channel, Side Front				$ 9.54
39	W10168547		Harness Channel, Side Rear				$ 19.56
40	8540643		Bracket, Spring				$ 12.86
41	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
42	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
43	W10137398		Stop, Top Panel		Appelez-nous	-
44	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
45	W10231519		Sleeve, Drain Hose		Appelez-nous	-
46	WP8540721		Brace, Top   (Replaces: 8540721)				$ 52.26
47	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 28.40
48	WPW10342663		Support, Top   (Replaces: W10279059)				$ 149.58
NI	W10628146		Cord, Power (european)   (Replaces: W10223809)				$ 124.89
NI	W10153836		Cord, Power (10a Cord Lock)		Appelez-nous	-
NI	W10223807		Cord, Power (british)		Appelez-nous	-
NI	W10628146		Cord, Power (austrailian)   (Replaces: W10223804)				$ 124.89

    View Diagram in Separate Window       Print Part List
