Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10171128 Case, Meter   (Replaces: W10171128) Special Order $ 359.38

2 W10247388 Sensor Assembly, Coin Optic (black) Appelez-nous -
2 WPW10247389 Sensor Assembly, Coin Optic (white)   (Replaces: W10247389) In-Stock Immediately $ 121.70

3 WPW10131838 Switch, Vault Service Door   (Replaces: W10131838) Special Order $ 25.11

4 W11204533 Bracket, Service Switch   (Replaces: W10133508) Appelez-nous -
5 WPW10139210 Screw   (Replaces: W10139210) Special Order $ 8.03

6 W10847806 Wire Harness, Sensor Switch   (Replaces: W10139456) Special Order $ 119.49

7 W11283272 Assembly, Service Door   (Replaces: 3351136) Special Order $ 111.17

8 W11401086 Cam, Commercial Lock   (Replaces: W10145154) Special Order $ 6.17

9 W10137448 Cushion, Meter Case Appelez-nous -
10 W11715721 Bolt   (Replaces: 3349065) Special Order $ 7.48

11 3347825 Plate, Mounting Appelez-nous -
12 W10841059 Screw   (Replaces: 98445) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

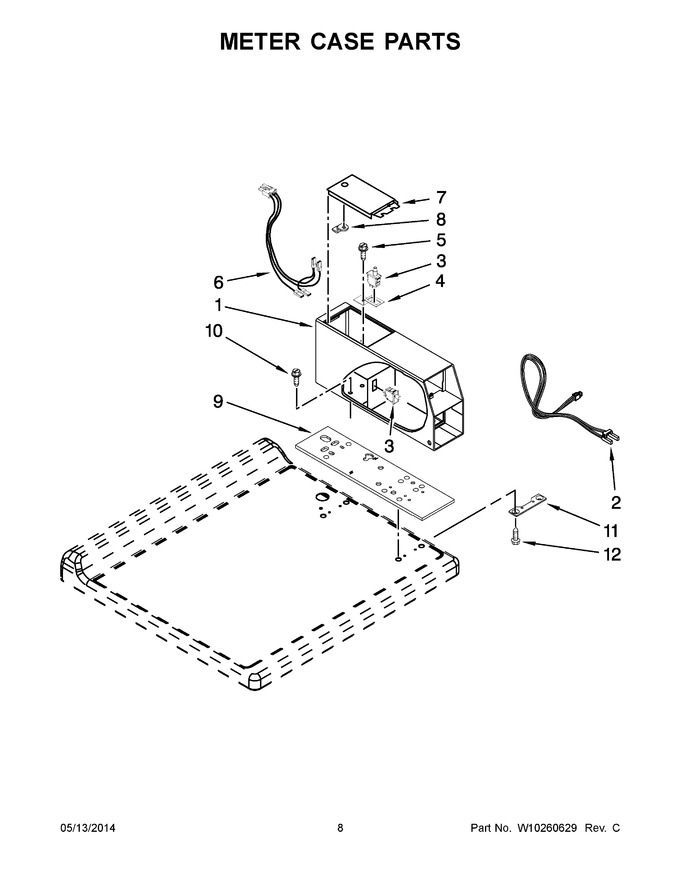

Diagram for MAH22PDAGW0
