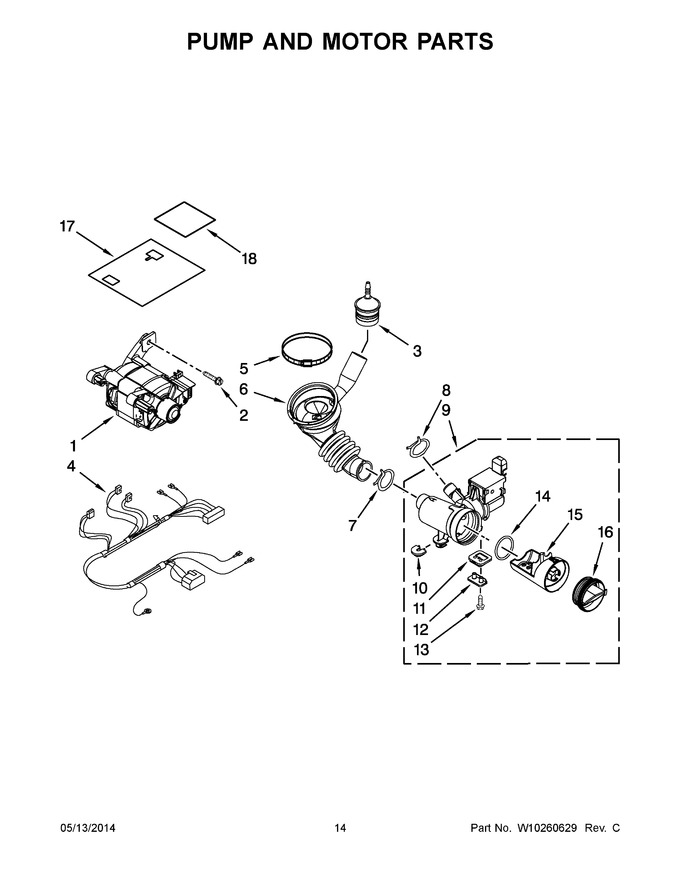

08 - Pump And Motor Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140579		Motor, Drive				$ 321.07
2	8540134		Bolt, Motor				$ 14.12
3	WPW10405608		Air Trap   (Replaces: 8540180)			Immediately	$ 7.91
4	W10200759		Harness, Motor		Appelez-nous	-
5	WP696392		Clamp   (Replaces: W10273037)				$ 9.08
6	W11366249		Hose, Tub To Pump   (Replaces: 8540012)			Immediately	$ 51.94
7	W10273036		Clamp, Hose				$ 16.28
8	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
9	W11244635		Pump Motor Only (not Illustrated)   (Replaces: W10183442)		Appelez-nous	-
9	W11129524		Pump (complete)   (Replaces: W10183441)				$ 131.33
10	W10034820		Foot, Rubber (slider)   (Replaces: W10191886)				$ 13.43
11	W10191880		Foot, Rubber (lock)		Appelez-nous	-
12	8540033		Cap, Lock Foot   (Replaces: W10190649)				$ 18.88
13	8533964		Screw   (Replaces: W10167905)				$ 12.60
14	WPW10730972		Seal, Filter Cap   (Replaces: W10201457)			Immediately	$ 177.38
15	WPW10730972		Filter   (Replaces: W10190647)			Immediately	$ 177.38
16	WPW10730972		Cap, Filter   (Replaces: W10190648)			Immediately	$ 177.38
17	W10275847		Shield, Motor		Appelez-nous	-
18	2266495		Cover Shield Tray		Appelez-nous	-
