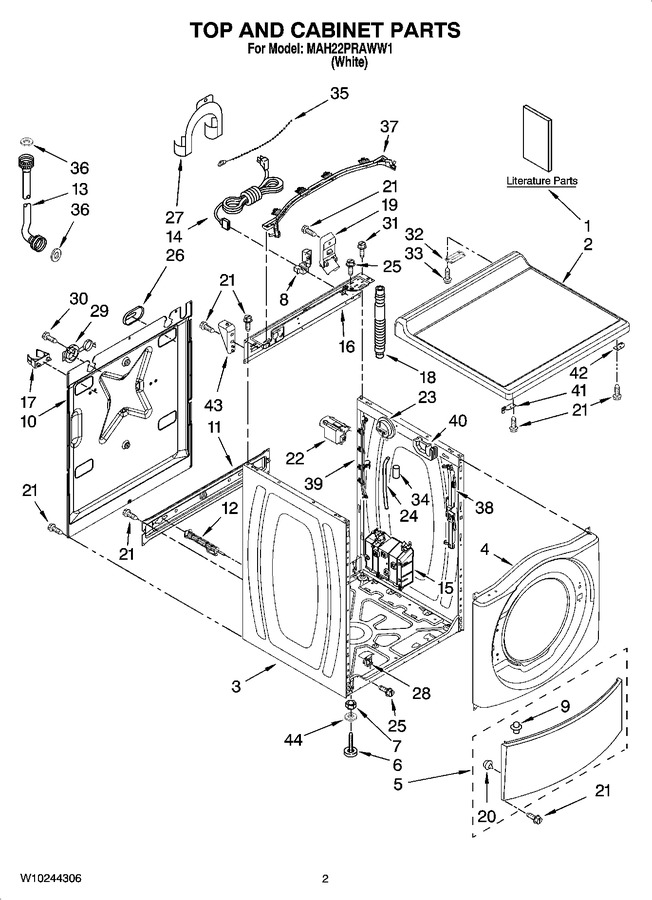

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10194214 | Tech Sheet (french) |
|
- | |||||
| 1 | W10244306 | Repair Parts List |
|
- | |||||
| 1 | W10165325 | Installation Instructions, Card Reader |
|
- | |||||
| 1 | W10165327 | Installation Instructions |
|
- | |||||
| 1 | W10165326 | Tech Sheet (english) |
|
- | |||||
| 2 | W11622909 | Top (Replaces: W10137410) |
|
- | |||||
| 3 | W10410294 | Cabinet (Replaces: W10201831) |
|
$ 367.09 | |||||
| 4 | WPW10306505 | Panel, Front (Replaces: W10112948) |
|
$ 356.83 | |||||
| 5 | WP8540664 | Toe Panel (Replaces: 8540813) |
|
$ 359.15 | |||||
| 6 | W10862938 | Foot, Leveling (4) (Replaces: W10121677) |
|
Immediately | $ 12.59 | ||||
| 7 | WP3359452 | Nut, Lock (4) (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 8 | 8182635 | Strain Relief, Power Cord (Replaces: W10110676) |
|
$ 16.72 | |||||
| 9 | 8518891 | Rivet |
|
$ 13.40 | |||||
| 10 | 8540582 | Panel, Rear |
|
- | |||||
| 11 | W10189659 | Brace, Transport |
|
$ 43.19 | |||||
| 12 | W10763471 | Bolt, Shipping (4) (Replaces: 8540199) |
|
$ 40.12 | |||||
| 13 | WP89503 | Hose, Water Inlet (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 13 | WP89503 | Hose, Water Inlet (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 14 | W10029820 | Cord, Power |
|
$ 122.14 | |||||
| 15 | WPW10197864 | Motor Control Unit (Replaces: W10197864) |
|
Immediately | $ 406.82 | ||||
| 16 | W10161694 | Brace, Rear |
|
$ 113.73 | |||||
| 17 | 8540093 | Clamp, Tube Transportation |
|
$ 6.72 | |||||
| 18 | WPW10114608 | Hose, Drain (Replaces: W10114608) |
|
Immediately | $ 23.01 | ||||
| 19 | 8540607 | Retainer, Hose Outlet |
|
$ 6.96 | |||||
| 20 | 238614 | Bumper (2) |
|
$ 80.76 | |||||
| 21 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 22 | WPW10367632 | Filter, Interference (Replaces: 8540230) |
|
$ 122.22 | |||||
| 23 | W10163980 | Switch, Pressure |
|
$ 87.59 | |||||
| 24 | W11252474 | Hose, Pressure Switch (Replaces: 8540294) |
|
Immediately | $ 35.23 | ||||
| 25 | 8540479 | Screw, Grounding |
|
$ 8.78 | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 6.95 | |||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: 8540021) |
|
$ 79.53 | |||||
| 28 | WPW10085220 | Microswitch (2) (Replaces: W10085220) |
|
$ 33.25 | |||||
| 29 | W11116978 | Sleeve, Cord Support (2) (Replaces: 8540728) |
|
$ 22.80 | |||||
| 30 | 8182201 | Screw, 3 X 8 Mm (Replaces: 8540727) |
|
$ 13.41 | |||||
| 31 | 8540329 | Screw |
|
- | |||||
| 32 | WP8565018 | Hinge & Pin Assembly (Replaces: 8565018) |
|
$ 109.85 | |||||
| 33 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 34 | W11751592 | Sleeve, Pressure Switch Hose (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 35 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 36 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 16123) |
|
$ 7.70 | |||||
| 37 | W10168548 | Harness Channel, Top Rear |
|
- | |||||
| 38 | W10200785 | Harness Channel, Side Front (Replaces: W10168546) |
|
$ 9.09 | |||||
| 39 | W10168547 | Harness Channel, Side Rear |
|
$ 18.63 | |||||
| 40 | 8540643 | Bracket, Spring |
|
$ 12.25 | |||||
| 41 | W10137445 | Bracket - Top Panel, Left |
|
- | |||||
| 42 | W10137444 | Bracket - Top Panel, Right |
|
- | |||||
| 43 | W10137398 | Stop - Top Panel |
|
- | |||||
| 44 | WP487576 | Washer, Nylon (4) (Replaces: 487576) |
|
Immediately | $ 9.88 |
